2026 Simplon · RD

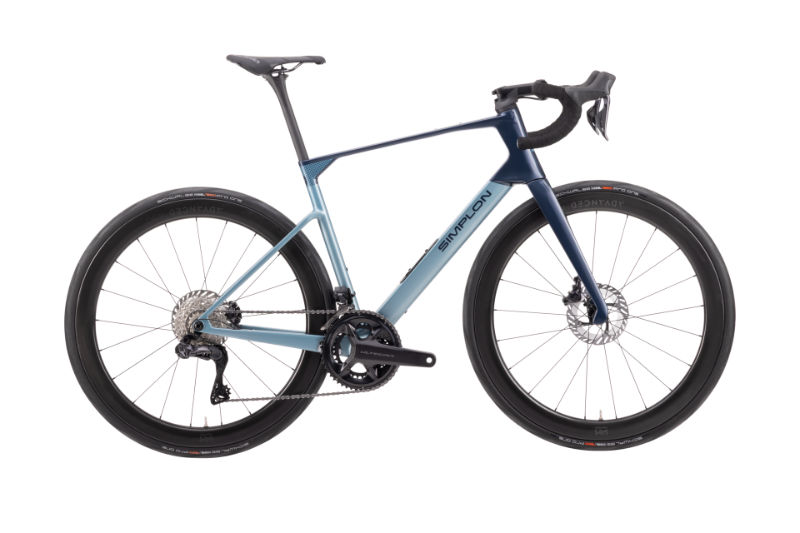

2026 Simplon Kiaro geometry
Full frame geometry for the 2026 Simplon Kiaro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 534 | 358 | 74 | 69 | 125 | 511 | 420 | 724 | 74 | 410 | 991 | 50 |
| 49 | 555 | 366 | 74 | 70 | 143 | 525 | 450 | 750 | 74 | 410 | 997 | 50 |
| 52 | 577 | 374 | 74 | 71.5 | 160 | 539 | 480 | 775 | 74 | 410 | 998 | 50 |
| 55 | 599 | 380 | 74 | 72 | 181 | 552 | 500 | 794 | 74 | 410 | 1006 | 50 |
| 58 | 617 | 391 | 74 | 72 | 200 | 568 | 520 | 812 | 74 | 412 | 1025 | 50 |
| 61 | 637 | 400 | 74 | 72 | 221 | 583 | 550 | 838 | 74 | 412 | 1041 | 50 |
All measurements in millimetres unless marked (°) for angles.
