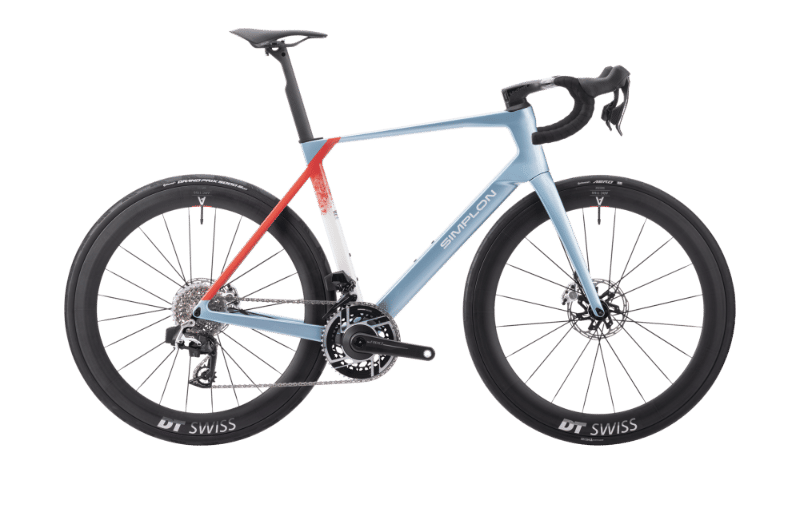

2026 Simplon Pavo geometry
Full frame geometry for the 2026 Simplon Pavo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 520 | 370 | 75 | 71 | 111 | 509 | 442 | 725 | 75 | 410 | 976 | 47 |
| 49 | 540 | 380 | 75 | 71.5 | 130 | 530 | 469 | 755 | 75 | 410 | 988 | 47 |
| 52 | 560 | 390 | 75 | 73 | 146 | 550 | 501 | 780 | 75 | 410 | 991 | 47 |
| 55 | 580 | 395 | 75 | 73 | 166 | 557 | 520 | 800 | 75 | 410 | 1002 | 47 |
| 58 | 600 | 400 | 75 | 73 | 186 | 583 | 540 | 820 | 75 | 410 | 1008 | 47 |
| 61 | 620 | 405 | 75 | 73 | 205 | 588 | 560 | 840 | 75 | 410 | 1013 | 47 |
All measurements in millimetres unless marked (°) for angles.
