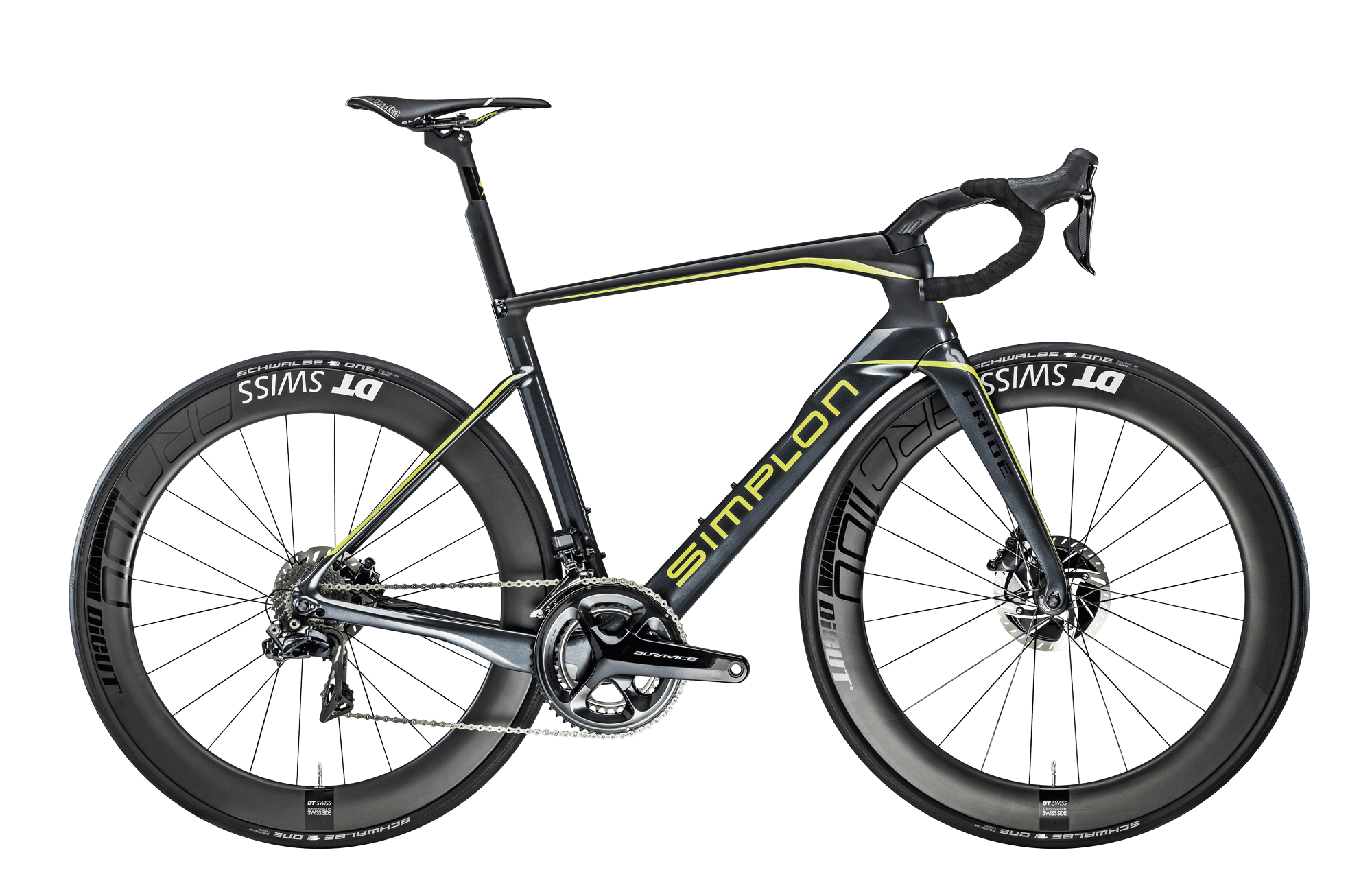

2018 Simplon Pride geometry
Full frame geometry for the 2018 Simplon Pride, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 530 | 374 | 73.5 | 71.5 | 130 | 530 | 463 | 740 | 77 | 410 | 976 | 45 |
| 49 | 535 | 383 | 73.4 | 71.9 | 130 | 543 | 470 | 744 | 77 | 410 | 983 | 45 |
| 52 | 544 | 391 | 73 | 73 | 135 | 557 | 486 | 761 | 74 | 410 | 984 | 45 |
| 55 | 562 | 396 | 73 | 73 | 153 | 568 | 505 | 777 | 74 | 410 | 995 | 45 |
| 58 | 582 | 401 | 73 | 73 | 175 | 579 | 525 | 796 | 74 | 410 | 1006 | 45 |
| 61 | 602 | 411 | 73 | 73 | 195 | 595 | 539 | 813 | 74 | 410 | 1022 | 45 |
All measurements in millimetres unless marked (°) for angles.
