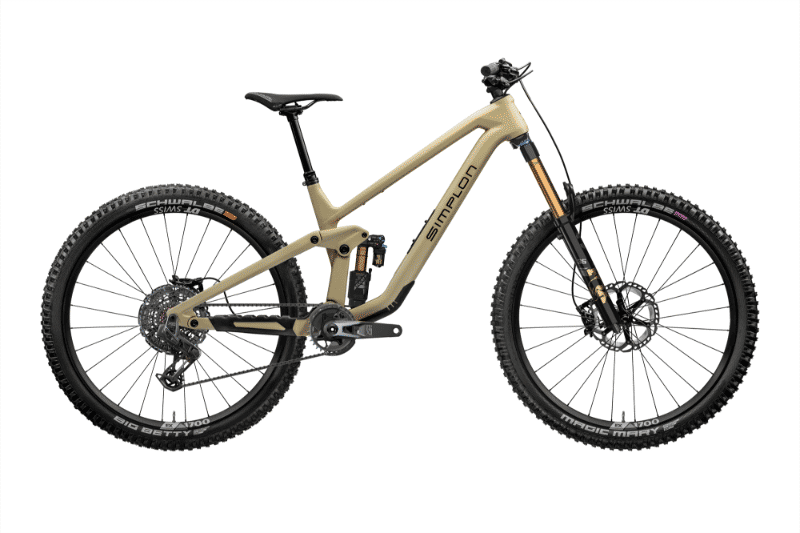

2026 Simplon Rapcon geometry
Full frame geometry for the 2026 Simplon Rapcon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 37/S | 623 | 440 | 78.5 | 64.5 | 97 | 568 | 370 | 738 | 36 | 432 | 1200 | 44 |
| 39.5/M | 629 | 460 | 78.5 | 64.5 | 104 | 567 | 395 | 738 | 36 | 438 | 1229 | 44 |
| 42/L | 639 | 480 | 78.5 | 64.5 | 115 | 610 | 420 | 744 | 32 | 443 | 1259 | 44 |
| 44.5/XL | 646 | 500 | 78.5 | 64.5 | 125 | 633 | 445 | 744 | 32 | 447 | 1285 | 44 |
All measurements in millimetres unless marked (°) for angles.
