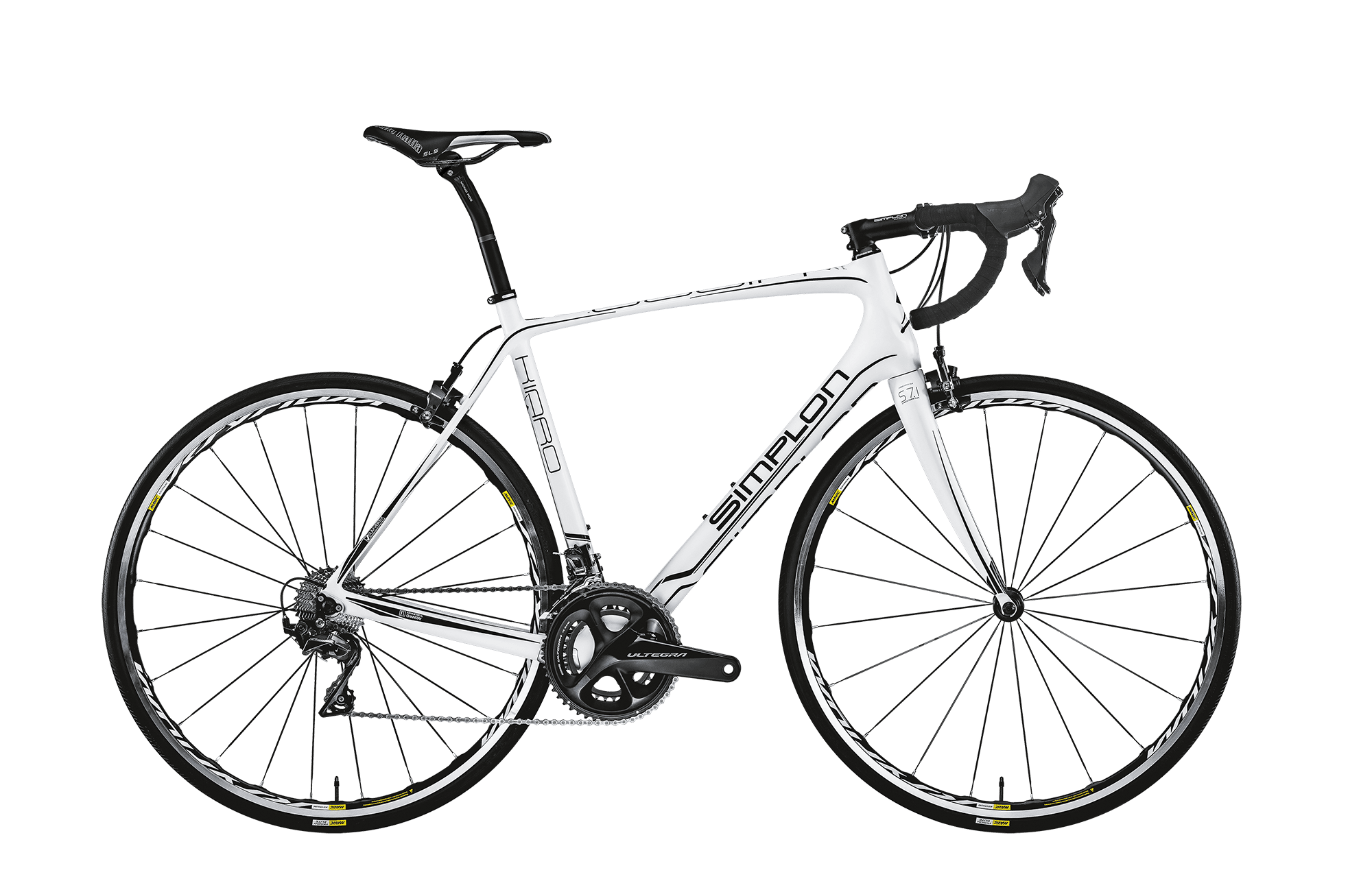

2018 Simplon Kiaro geometry
Full frame geometry for the 2018 Simplon Kiaro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 525 | 369 | 75 | 71.5 | 120 | 510 | 470 | 75 | 405 | 965 | 45 |
| 51 | 551 | 382 | 75 | 72 | 145 | 530 | 510 | 75 | 405 | 982 | 45 |
| 55 | 583 | 377 | 73 | 73 | 180 | 555 | 550 | 70 | 415 | 989 | 45 |
| 58 | 612 | 388 | 73 | 73 | 210 | 575 | 580 | 70 | 415 | 1010 | 45 |
| 62 | 630 | 397 | 73 | 73 | 230 | 590 | 620 | 70 | 415 | 1025 | 45 |
All measurements in millimetres unless marked (°) for angles.
