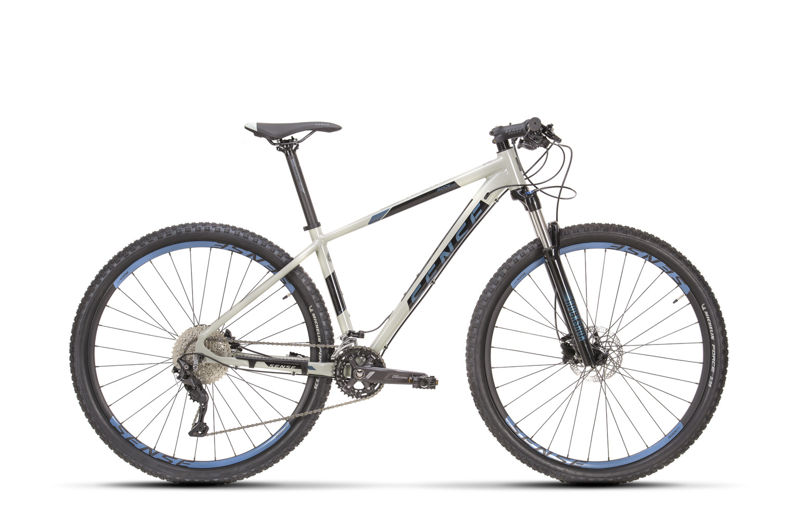

2023 Sense Rock Evo geometry
Full frame geometry for the 2023 Sense Rock Evo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 600 | 387 | 73.5 | 69.5 | 100 | 565 | 380 | 58 | 647 | 445 | 1085 | 51 |
| M | 610 | 414 | 73.5 | 69.5 | 110 | 595 | 430 | 58 | 677 | 445 | 1116 | 51 |
| L | 619 | 436 | 73.5 | 69.5 | 120 | 620 | 490 | 58 | 703 | 445 | 1142 | 51 |
| XL | 619 | 454 | 73.5 | 69.5 | 120 | 638 | 520 | 58 | 721 | 445 | 1160 | 51 |
All measurements in millimetres unless marked (°) for angles.
