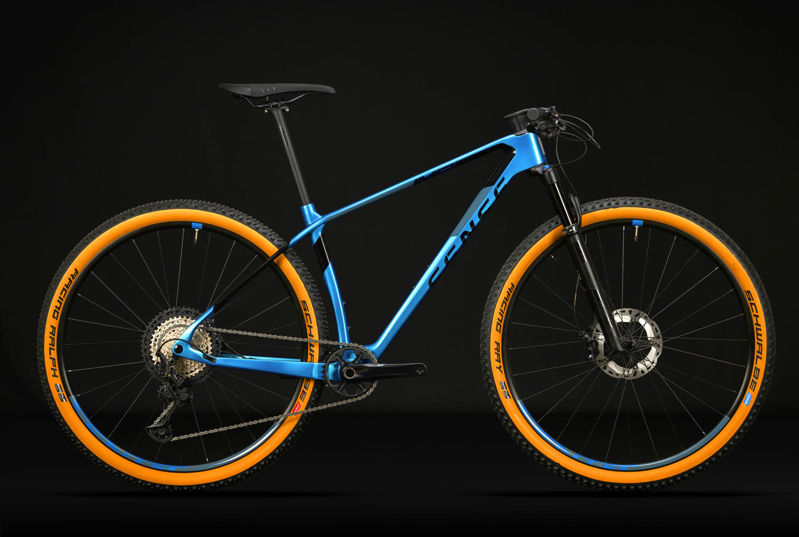

2022 Sense Impact Carbon Comp geometry
Full frame geometry for the 2022 Sense Impact Carbon Comp, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 602.4 | 425 | 74 | 68.5 | 95 | 598 | 430 | 58 | 683 | 435 | 1118 | 44 |
| S | 602.4 | 395 | 74 | 68.5 | 95 | 568 | 390 | 58 | 647 | 435 | 1082 | 44 |
| L | 607.1 | 445 | 73.8 | 68.5 | 100 | 619 | 470 | 58 | 698 | 435 | 1133 | 44 |
All measurements in millimetres unless marked (°) for angles.
