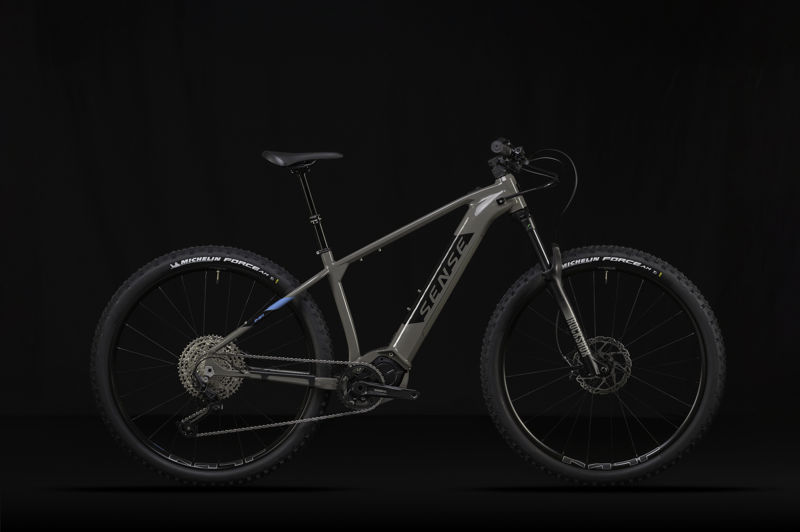

2022 Sense Impact E-Trail geometry
Full frame geometry for the 2022 Sense Impact E-Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 639 | 461 | 74 | 66 | 110 | 644 | 455 | 58 | 763 | 458 | 1216 | 44 |
| M | 639 | 442 | 74 | 66 | 110 | 624 | 430 | 58 | 743 | 458 | 1196 | 44 |
| S | 639 | 426 | 74 | 66 | 100 | 605 | 390 | 58 | 723 | 458 | 1176 | 44 |
All measurements in millimetres unless marked (°) for angles.
