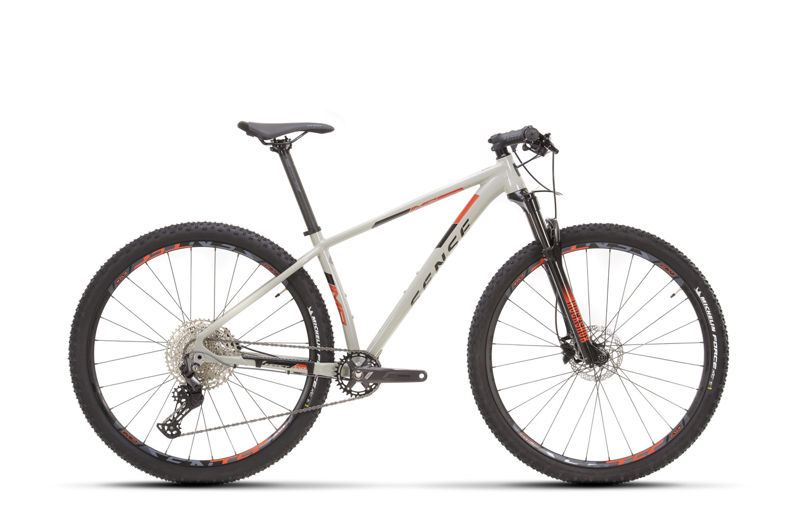

2023 Sense Impact Evo geometry
Full frame geometry for the 2023 Sense Impact Evo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 596 | 377 | 74 | 69 | 100 | 548 | 390 | 58 | 646 | 439 | 1079 | 51 |
| M | 603 | 410 | 74 | 69 | 100 | 589 | 430 | 58 | 682 | 439 | 1115 | 51 |
| L | 614 | 428 | 74 | 69 | 120 | 610 | 470 | 58 | 704 | 439 | 1137 | 51 |
| XL | 622 | 442 | 73 | 69 | 120 | 630 | 520 | 58 | 719 | 439 | 1152 | 51 |
All measurements in millimetres unless marked (°) for angles.
