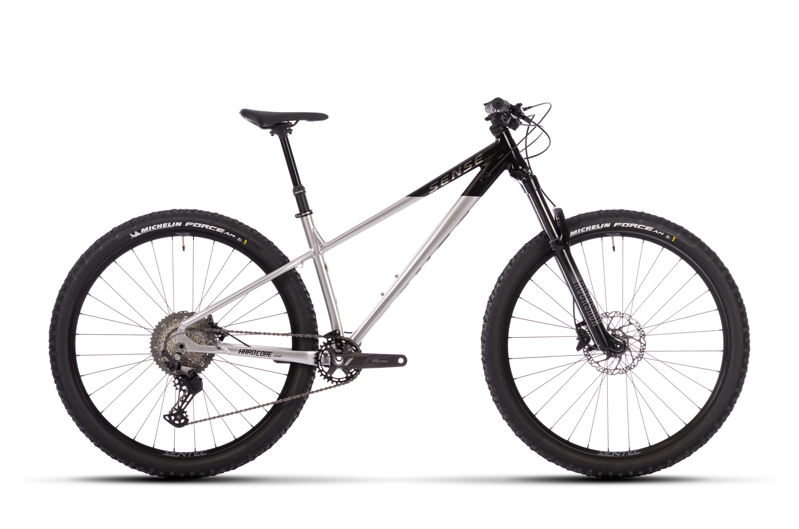

2023 Sense Hardcord Comp geometry
Full frame geometry for the 2023 Sense Hardcord Comp, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 624 | 408 | 74.5 | 65 | 100 | 580 | 380 | 40 | 728 | 430 | 1171 | 44 |
| M | 634 | 420 | 74.5 | 65 | 110 | 602 | 420 | 40 | 765 | 430 | 1195 | 44 |
| L | 637 | 451 | 74.5 | 65 | 120 | 628 | 460 | 40 | 778 | 430 | 1222 | 44 |
| XL | 643 | 470 | 74.5 | 65 | 130 | 655 | 490 | 40 | 821 | 430 | 1251 | 44 |
All measurements in millimetres unless marked (°) for angles.
