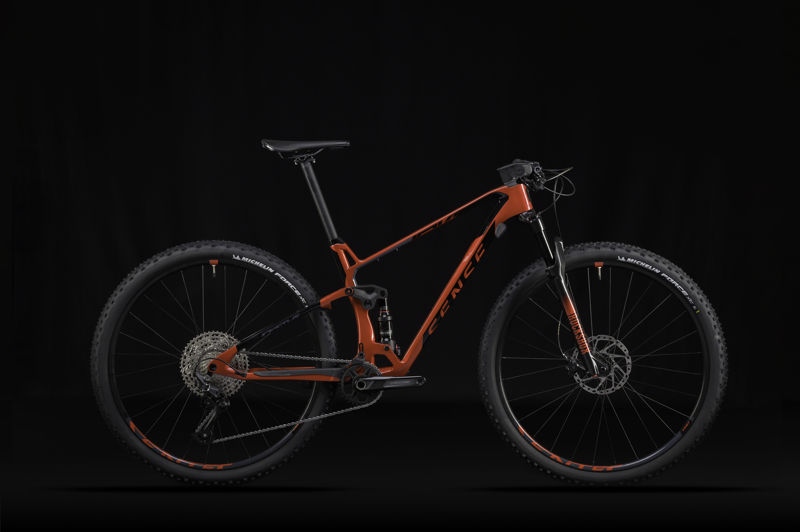

2022 Sense Invictus Pro geometry
Full frame geometry for the 2022 Sense Invictus Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 608.6 | 435 | 75 | 67 | 95 | 600 | 430 | 45 | 721 | 438 | 1159 | 51 |
| S | 608.6 | 410 | 75 | 67 | 85 | 575 | 390 | 45 | 696 | 438 | 1134 | 51 |
| L | 617.9 | 460 | 75 | 67 | 105 | 628 | 460 | 45 | 749 | 438 | 1187 | 51 |
All measurements in millimetres unless marked (°) for angles.
