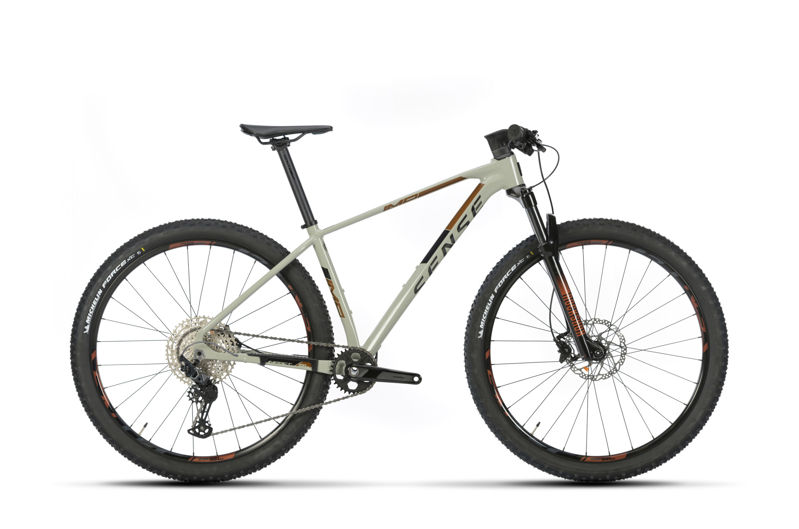

2022 Sense Impact SL geometry
Full frame geometry for the 2022 Sense Impact SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 598 | 425 | 74 | 68.5 | 95 | 596 | 430 | 58 | 695 | 435 | 1124 | 51 |
| S | 598 | 395 | 74 | 68.5 | 95 | 566 | 390 | 58 | 665 | 435 | 1094 | 51 |
| L | 621 | 445 | 74 | 68.5 | 120 | 625 | 470 | 58 | 724 | 435 | 1153 | 51 |
| XL | 621 | 445 | 73 | 68.5 | 120 | 635 | 520 | 58 | 724 | 435 | 1153 | 51 |
All measurements in millimetres unless marked (°) for angles.
