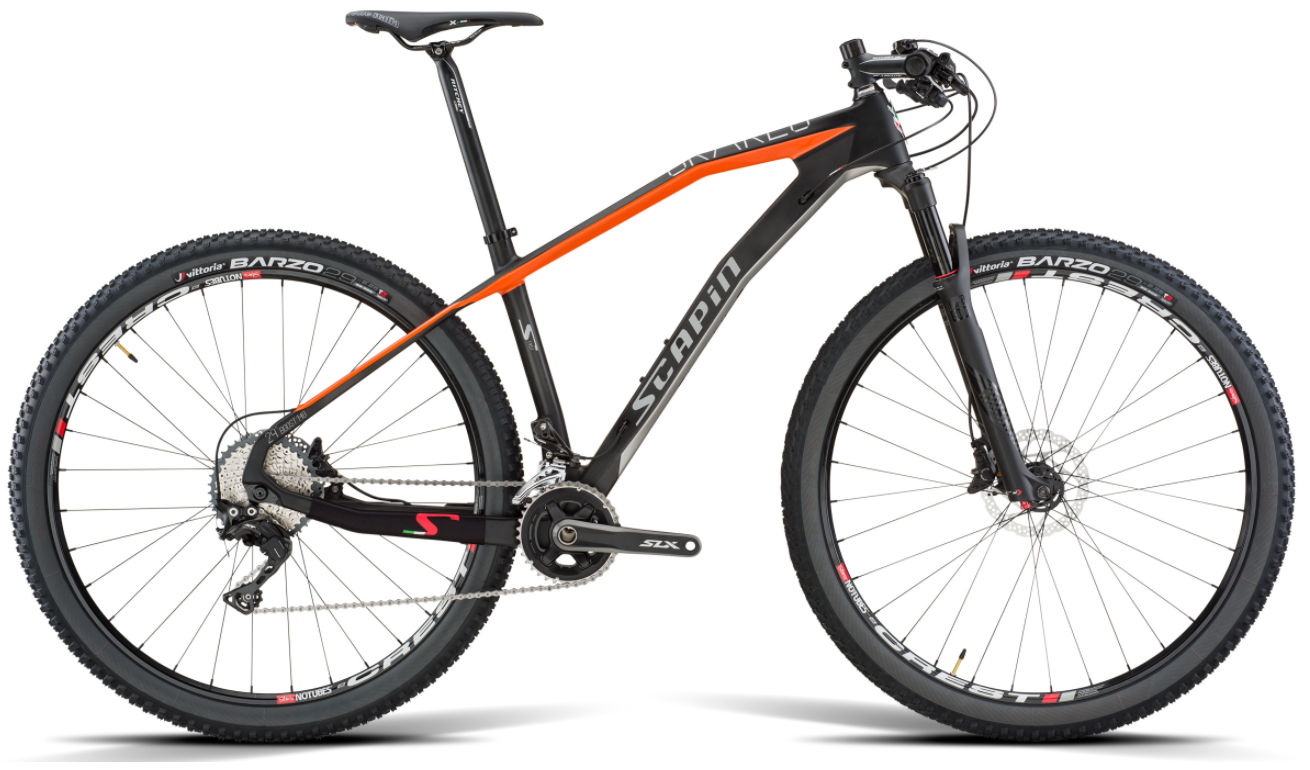

2017 Scapin Oraklo geometry
Full frame geometry for the 2017 Scapin Oraklo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 607 | 411 | 74.5 | 70.5 | 90 | 560 | 390 | 807 | 63 | 648 | 440 | 1081 | 39 |
| M | 622 | 429 | 73.5 | 71 | 105 | 590 | 440 | 842 | 63 | 665 | 440 | 1098 | 39 |
| L | 632 | 446 | 73.5 | 71 | 115 | 610 | 480 | 867 | 63 | 686 | 440 | 1118 | 39 |
| XL | 649 | 466 | 73 | 71.5 | 130 | 640 | 530 | 903 | 63 | 706 | 440 | 1139 | 39 |
All measurements in millimetres unless marked (°) for angles.
