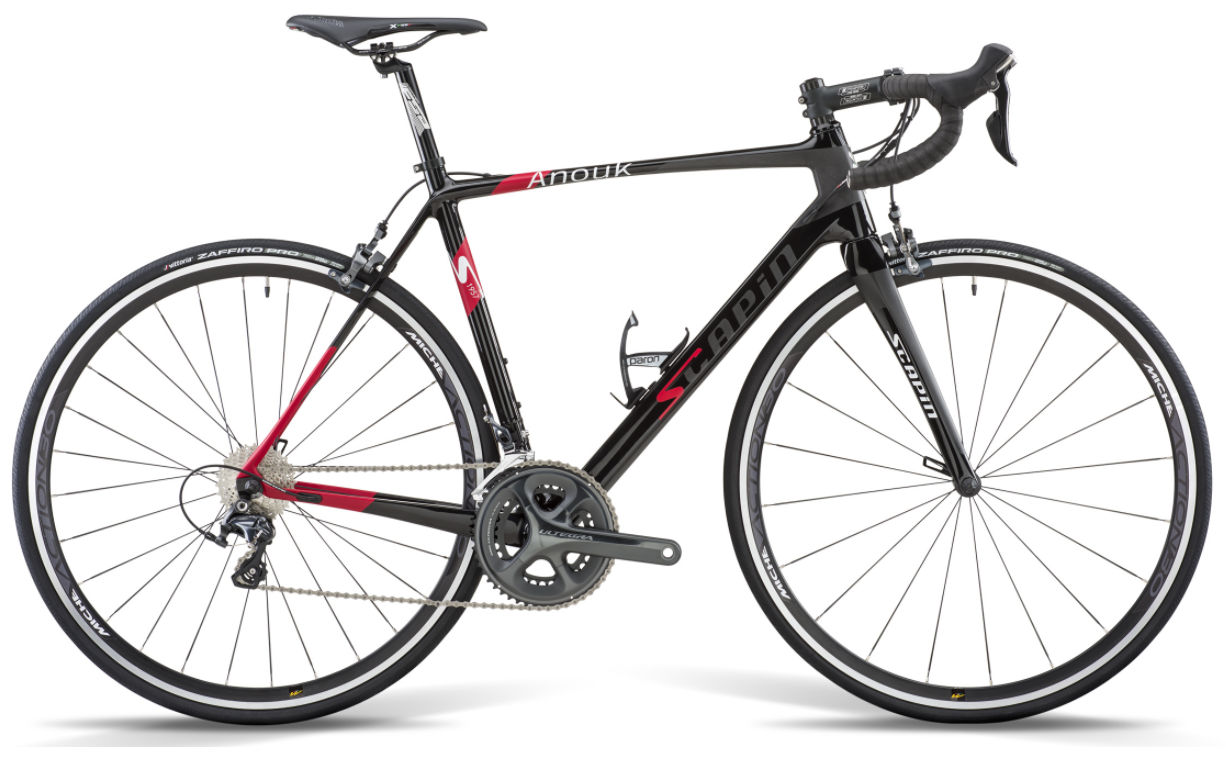

2017 Scapin Anouk geometry
Full frame geometry for the 2017 Scapin Anouk, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 518 | 381 | 74 | 71.5 | 120 | 535 | 490 | 772 | 68 | 582 | 405 | 978 | 43 |
| M | 535 | 386 | 73.5 | 72 | 140 | 545 | 520 | 797 | 68 | 588 | 405 | 985 | 43 |
| L | 553 | 391 | 73 | 73 | 155 | 560 | 540 | 817 | 68 | 588 | 405 | 985 | 43 |
| XL | 572 | 395 | 73 | 73 | 175 | 570 | 560 | 837 | 68 | 598 | 405 | 995 | 43 |
| XXL | 586 | 400 | 72.5 | 72.5 | 195 | 585 | 590 | 860 | 68 | 613 | 405 | 1014 | 43 |
All measurements in millimetres unless marked (°) for angles.
