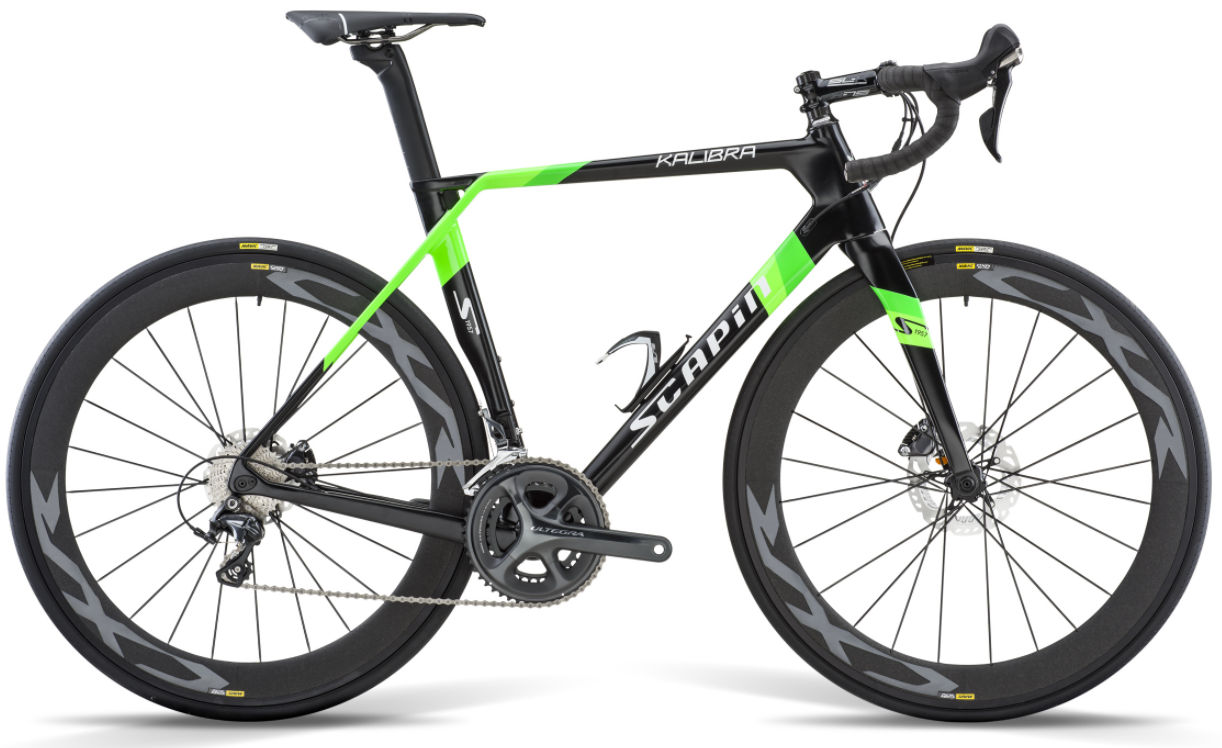

2017 Scapin Kalibra geometry
Full frame geometry for the 2017 Scapin Kalibra, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 514 | 383 | 74.5 | 72 | 115 | 525 | 450 | 752 | 70 | 578 | 409 | 977 | 45 |
| M | 534 | 389 | 74 | 72.5 | 135 | 542 | 480 | 778 | 70 | 587 | 409 | 985 | 45 |
| L | 559 | 399 | 73.5 | 73 | 160 | 565 | 510 | 807 | 70 | 600 | 409 | 999 | 45 |
| XL | 584 | 404 | 73 | 73.5 | 185 | 583 | 540 | 835 | 70 | 608 | 409 | 1007 | 45 |
| XXL | 605 | 404 | 72.5 | 74 | 205 | 593 | 570 | 862 | 70 | 608 | 409 | 1007 | 45 |
All measurements in millimetres unless marked (°) for angles.
