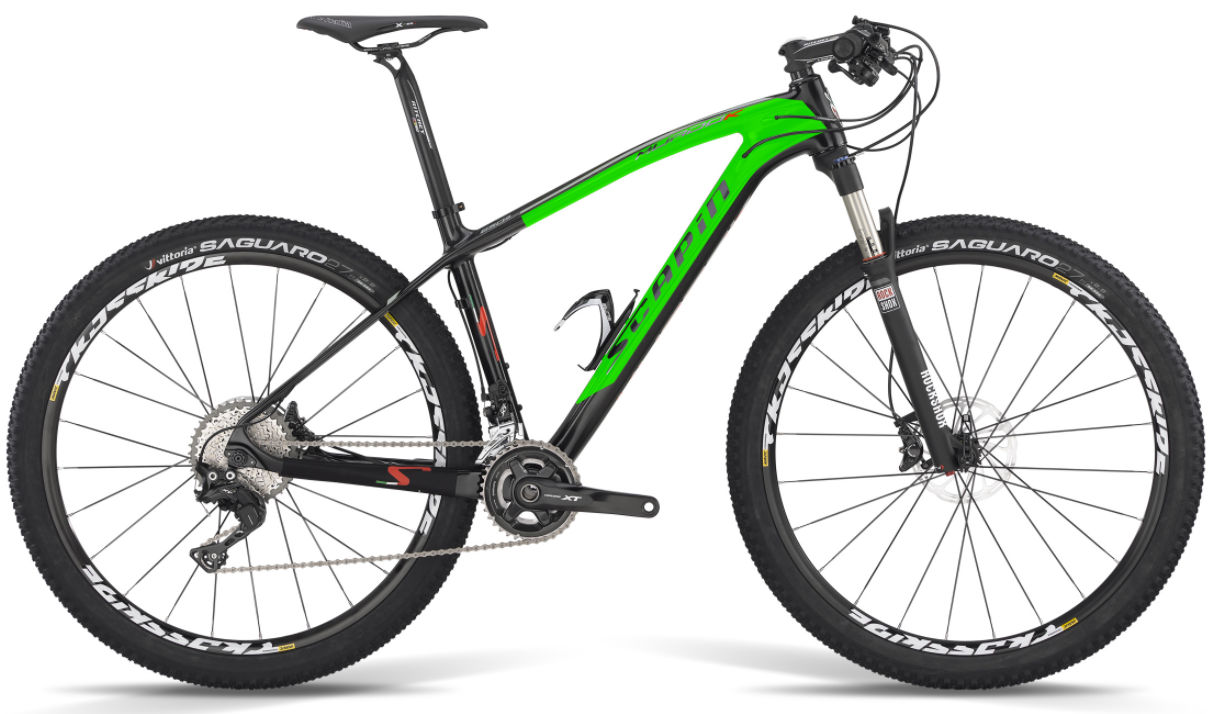

2017 Scapin Murdok geometry
Full frame geometry for the 2017 Scapin Murdok, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 596 | 403 | 73 | 71 | 110 | 585 | 432 | 816 | 53 | 633 | 425 | 1053 | 39 |
| S | 596 | 373 | 73 | 71 | 100 | 555 | 381 | 789 | 53 | 603 | 425 | 1023 | 39 |
| L | 603 | 431 | 73 | 71 | 120 | 615 | 483 | 846 | 53 | 663 | 425 | 1083 | 39 |
| XL | 617 | 451 | 73 | 71 | 130 | 640 | 533 | 879 | 53 | 689 | 425 | 1109 | 39 |
All measurements in millimetres unless marked (°) for angles.
