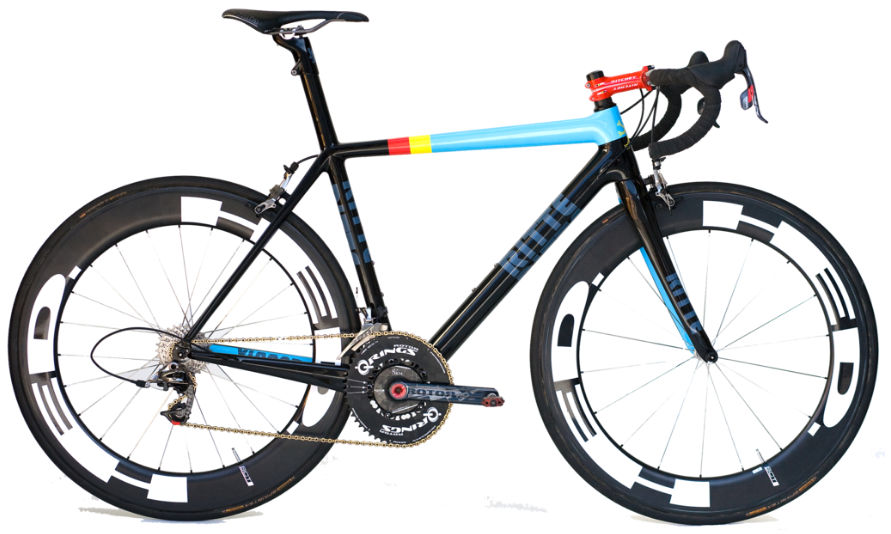

2015 Ritte Vlaanderen geometry
Full frame geometry for the 2015 Ritte Vlaanderen, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 505 | 375 | 74 | 71 | 105 | 515 | 743 | 68 | 410 | 973 | 45 |
| S | 514 | 378 | 74 | 71.5 | 115 | 530 | 751 | 68 | 410 | 984 | 45 |
| M | 542 | 385 | 74 | 72 | 140 | 540 | 779 | 68 | 410 | 990 | 45 |
| L | 559 | 394 | 73.5 | 73.5 | 155 | 565 | 794 | 68 | 410 | 996 | 45 |
| XL | 588 | 405 | 73.5 | 73.5 | 185 | 575 | 823 | 68 | 410 | 1006 | 45 |
| XXL | 610 | 414 | 73.5 | 74 | 210 | 590 | 844 | 68 | 410 | 1016 | 45 |
All measurements in millimetres unless marked (°) for angles.
