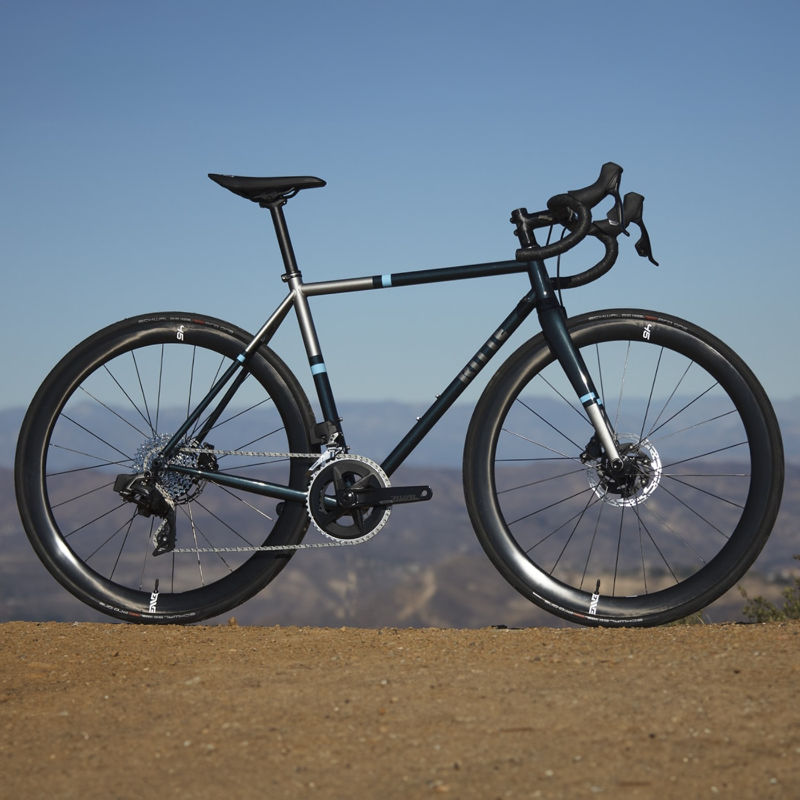

2025 Ritte The Phantom geometry
Full frame geometry for the 2025 Ritte The Phantom, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 523 | 374 | 74 | 72 | 115 | 525 | 499 | 76 | 425 | 991 | 50 |
| S | 541 | 378 | 73.5 | 72.5 | 135 | 539 | 518 | 74 | 420 | 991 | 50 |
| M | 559 | 388 | 73.5 | 73 | 150 | 554 | 536 | 74 | 415 | 990 | 43 |
| L | 577 | 390 | 73 | 73.5 | 165 | 565 | 548 | 72 | 415 | 992 | 43 |
| XL | 588 | 398 | 73 | 73.5 | 180 | 577 | 565 | 72 | 415 | 1004 | 43 |
| XXL | 605 | 406 | 72.5 | 73.5 | 200 | 593 | 582 | 70 | 420 | 1023 | 43 |
All measurements in millimetres unless marked (°) for angles.
