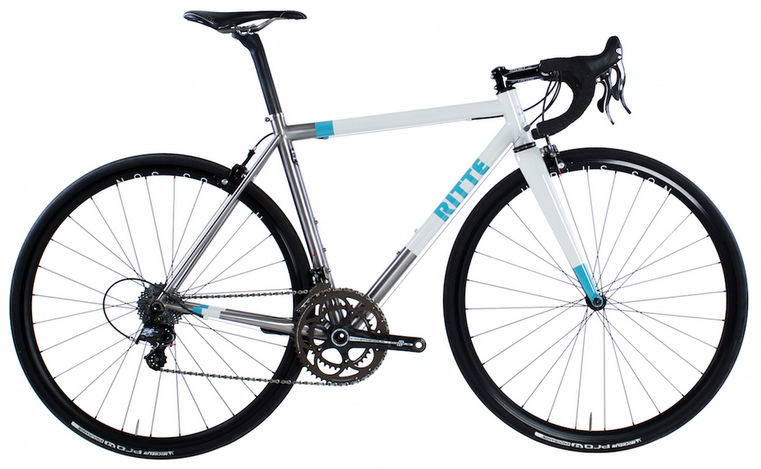

2015 Ritte Snob geometry

Name: 2015 Ritte Snob
Brand: Ritte

Full frame geometry for the 2015 Ritte Snob, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
52	521	368	74	71.5	106	518	759	72	405	965	43
53	541	380	74	72	126	529	778	72	405	972	43
54	552	381	74	72.5	136	539	789	72	408	981	43
55	563	383	73.5	73	146	550	799	72	410	984	43
56	574	390	73.5	73.5	156	560	810	72	410	989	43
58	588	399	73	73.5	175	580	823	72	412	1006	43

All measurements in millimetres unless marked (°) for angles.
