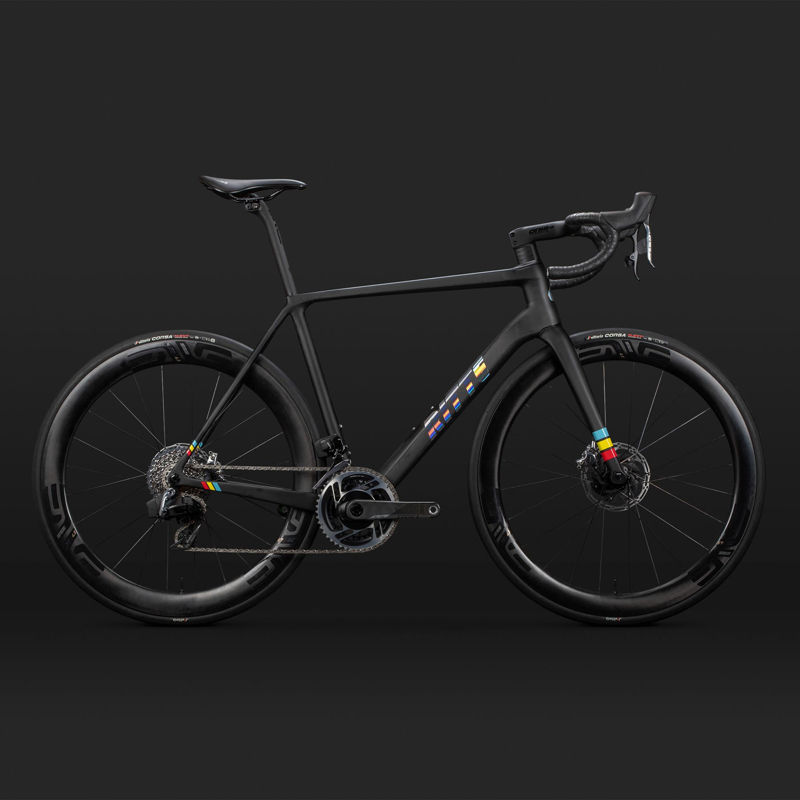

2024 Ritte The Esprit geometry
Full frame geometry for the 2024 Ritte The Esprit, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 513 | 374 | 74.5 | 72 | 105 | 518 | 428 | 76 | 420 | 982 | 50 |
| S | 532 | 382 | 74 | 72.5 | 125 | 535 | 463 | 74 | 420 | 993 | 50 |
| M | 549 | 387 | 73.5 | 73 | 140 | 550 | 499 | 74 | 415 | 987 | 45 |
| L | 562 | 393 | 73 | 73 | 155 | 565 | 512 | 72 | 415 | 999 | 45 |
| XL | 579 | 403 | 73 | 73.5 | 170 | 580 | 528 | 72 | 415 | 1006 | 42 |
| XXL | 598 | 411 | 72.8 | 74 | 190 | 596 | 547 | 70 | 420 | 1020 | 42 |
All measurements in millimetres unless marked (°) for angles.
