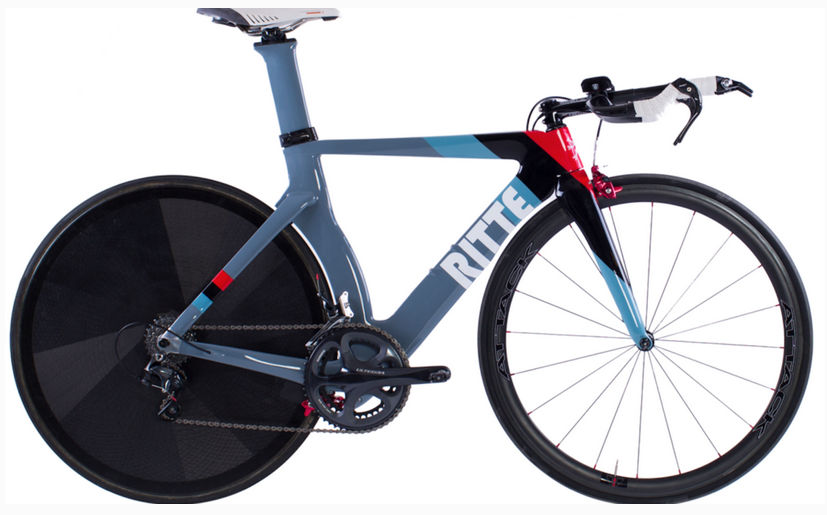

2014 Ritte 1919TT geometry
Full frame geometry for the 2014 Ritte 1919TT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 496 | 396 | 77 | 73 | 90 | 510 | 734 | 70 | 379 | 940 | 44 |
| M | 510 | 414 | 77 | 73 | 104 | 530 | 747 | 70 | 379 | 961 | 44 |
| L | 525 | 430 | 77 | 73 | 120 | 560 | 761 | 70 | 379 | 994 | 44 |
| XL | 544 | 437 | 77 | 73 | 140 | 570 | 779 | 70 | 379 | 999 | 44 |
All measurements in millimetres unless marked (°) for angles.
