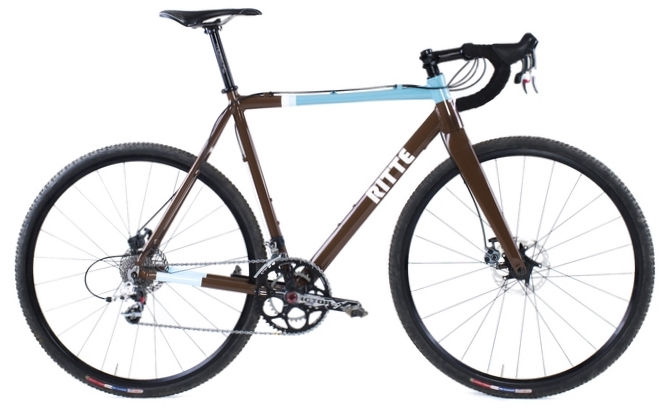

2014 Ritte Crossberg Disc geometry
Full frame geometry for the 2014 Ritte Crossberg Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 517 | 363 | 75 | 70.5 | 100 | 505 | 756 | 65 | 425 | 991 | 45 |
| S | 538 | 374 | 74.5 | 71 | 120 | 525 | 775 | 65 | 425 | 1004 | 45 |
| M | 560 | 378 | 74 | 71.5 | 140 | 540 | 797 | 65 | 425 | 1011 | 45 |
| L | 568 | 386 | 73.5 | 71.5 | 150 | 550 | 804 | 65 | 425 | 1021 | 45 |
| XL | 589 | 395 | 73.5 | 72 | 170 | 570 | 824 | 65 | 425 | 1032 | 45 |
| 2XL | 612 | 398 | 73 | 72.5 | 190 | 585 | 846 | 67 | 425 | 1036 | 45 |
All measurements in millimetres unless marked (°) for angles.
