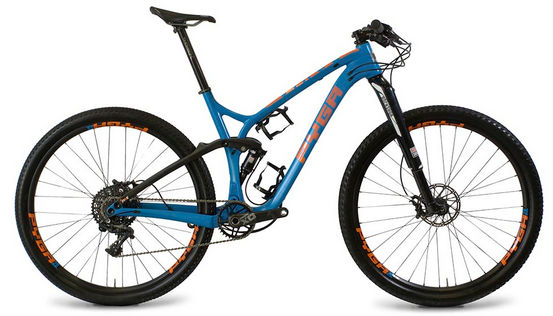

2015 Pyga Stage MK I geometry
Full frame geometry for the 2015 Pyga Stage MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 614 | 435 | 74.6 | 68.5 | 110 | 605 | 440 | 35 | 713 | 440 | 1151 | 46 | 92 |
| L | 623 | 455 | 75 | 68.5 | 120 | 622 | 480 | 35 | 737 | 440 | 1175 | 46 | 92 |
| XL | 633 | 475 | 75.3 | 68.5 | 130 | 650 | 520 | 35 | 760 | 440 | 1198 | 46 | 92 |
All measurements in millimetres unless marked (°) for angles.
