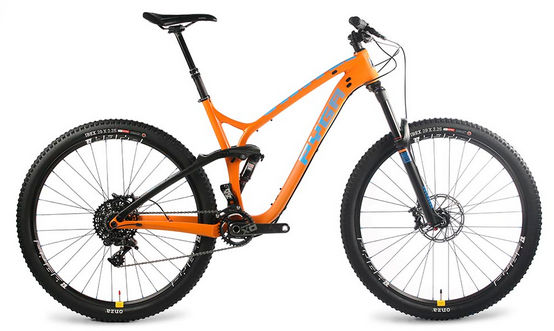

2015 Pyga Stage Max geometry
Full frame geometry for the 2015 Pyga Stage Max, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 618 | 430 | 73.1 | 67.5 | 110 | 600 | 440 | 22 | 728 | 438 | 1165 | 46 | 98 |
| L | 627 | 450 | 73.5 | 67.5 | 120 | 617 | 480 | 22 | 751 | 438 | 1188 | 46 | 98 |
| XL | 638 | 470 | 73.9 | 67.5 | 130 | 645 | 520 | 22 | 764 | 438 | 1201 | 46 | 98 |
All measurements in millimetres unless marked (°) for angles.
