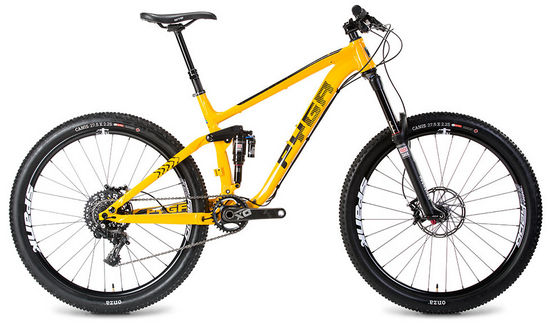

2015 Pyga OneForty650 geometry
Full frame geometry for the 2015 Pyga OneForty650, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 584 | 415 | 73 | 67 | 110 | 580 | 390 | 7 | 706 | 431 | 1137 | 42 | 100 |
| M | 593 | 434 | 73 | 67 | 120 | 600 | 440 | 7 | 729 | 431 | 1160 | 42 | 100 |
| L | 602 | 455 | 73 | 67 | 130 | 627 | 480 | 7 | 754 | 431 | 1185 | 42 | 100 |
All measurements in millimetres unless marked (°) for angles.
