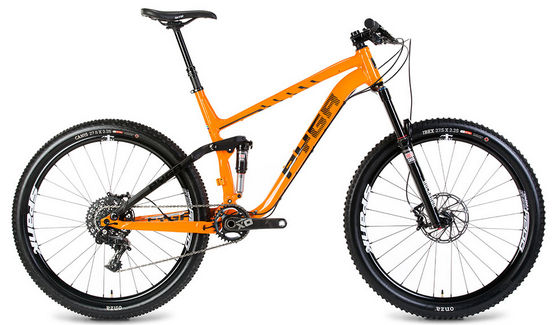

2015 Pyga OneTwenty650 geometry
Full frame geometry for the 2015 Pyga OneTwenty650, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 586 | 404 | 74 | 68 | 110 | 572 | 420 | 8 | 682 | 430 | 1112 | 42 | 93 |
| L | 604 | 449 | 74 | 68 | 130 | 620 | 500 | 8 | 730 | 430 | 1160 | 42 | 93 |
| M | 695 | 426 | 74 | 68 | 120 | 595 | 460 | 8 | 704 | 430 | 1134 | 42 | 93 |
All measurements in millimetres unless marked (°) for angles.
