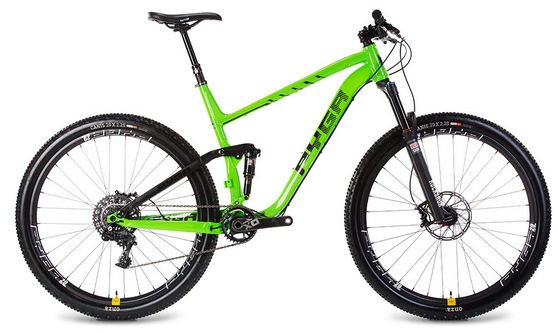

2015 Pyga OneTen29 geometry
Full frame geometry for the 2015 Pyga OneTen29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 613 | 424 | 74 | 69 | 110 | 600 | 460 | 25 | 701 | 443 | 1143 | 46 | 88 |
| L | 623 | 442 | 74 | 69 | 120 | 620 | 500 | 25 | 722 | 443 | 1164 | 46 | 88 |
| XL | 632 | 459 | 74 | 69 | 130 | 640 | 530 | 25 | 743 | 443 | 1185 | 46 | 88 |
All measurements in millimetres unless marked (°) for angles.
