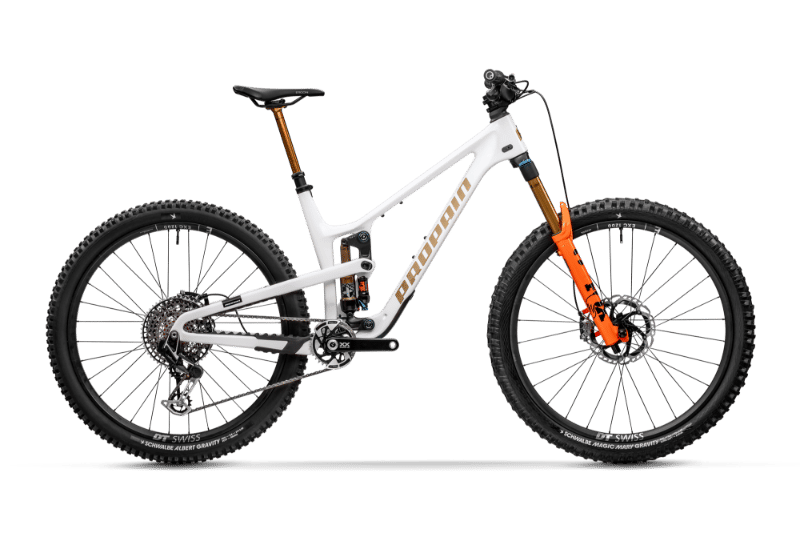

2026 Propain Tyee CF Trail geometry
Full frame geometry for the 2026 Propain Tyee CF Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 598 | 424 | 77.2 | 64 | 110 | 561 | 400 | 14 | 752 | 430 | 1182 | 37 |
| M | 625 | 450 | 77 | 64.2 | 105 | 593 | 425 | 30 | 787 | 446 | 1233 | 44 |
| L | 634 | 475 | 77 | 64.2 | 115 | 621 | 450 | 30 | 817 | 446 | 1263 | 44 |
| XL | 644 | 500 | 77 | 64.2 | 125 | 649 | 480 | 30 | 846 | 446 | 1292 | 44 |
All measurements in millimetres unless marked (°) for angles.
