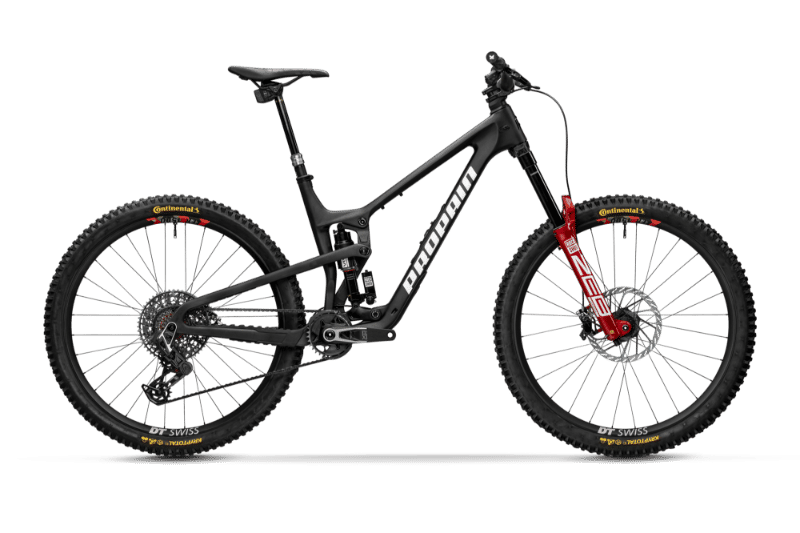

2026 Propain Spindrift 5 CF geometry
Full frame geometry for the 2026 Propain Spindrift 5 CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 613 | 435 | 73.2 | 63.5 | 85 | 565 | 410 | 795 | 23 | 445 | 1223 | 44 |
| M | 627 | 460 | 73.2 | 63.5 | 100 | 593 | 425 | 793 | 23 | 445 | 1254 | 44 |
| L | 636 | 485 | 73.2 | 63.5 | 110 | 620 | 450 | 789 | 23 | 445 | 1284 | 44 |
| XL | 649 | 510 | 73.4 | 63.5 | 125 | 648 | 480 | 787 | 23 | 445 | 1315 | 44 |
All measurements in millimetres unless marked (°) for angles.
