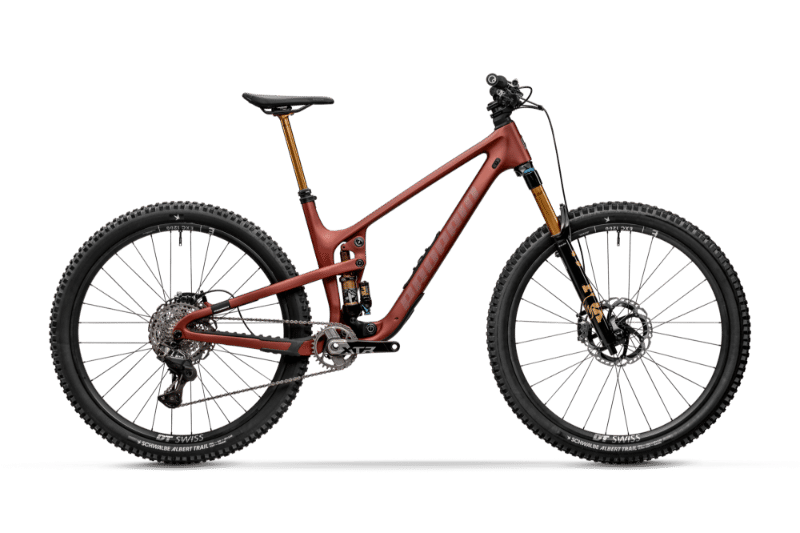

2026 Propain Hugene CF geometry
Full frame geometry for the 2026 Propain Hugene CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 612 | 433 | 74.8 | 64.8 | 100 | 569 | 390 | 794 | 36 | 445 | 1197 | 44 |
| M | 621 | 458 | 74.8 | 64.8 | 110 | 597 | 410 | 791 | 36 | 445 | 1226 | 44 |
| L | 632 | 483 | 74.8 | 64.8 | 120 | 623 | 430 | 793 | 36 | 445 | 1255 | 44 |
| XL | 639 | 508 | 74.8 | 64.8 | 130 | 651 | 460 | 784 | 36 | 445 | 1285 | 44 |
All measurements in millimetres unless marked (°) for angles.
