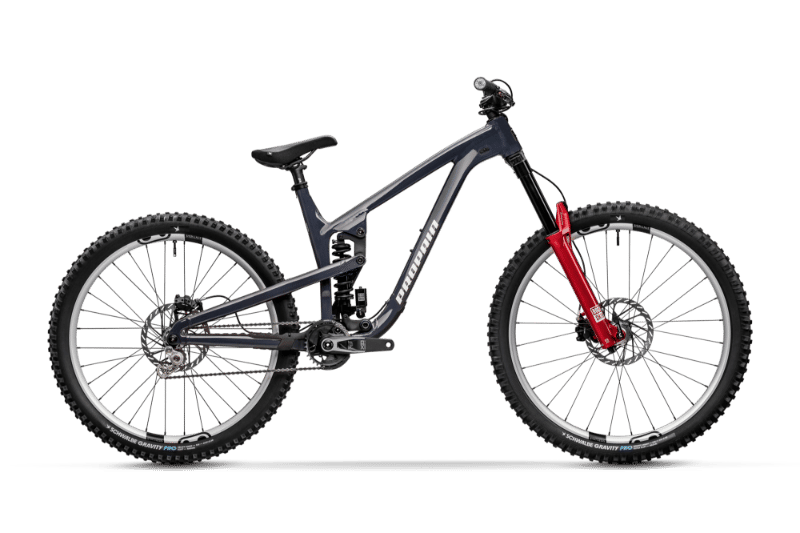

2026 Propain Spindrift 5 AL geometry
Full frame geometry for the 2026 Propain Spindrift 5 AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 430 | 76.4 | 63.9 | 100 | 553 | 420 | 816 | 14 | 435 | 1196 | 38 |
| M | 636 | 455 | 75.2 | 63.9 | 100 | 585 | 440 | 829 | 27 | 445 | 1244 | 44 |
| L | 644 | 480 | 74.9 | 63.9 | 110 | 612 | 460 | 826 | 27 | 445 | 1274 | 44 |
| XL | 658 | 505 | 74.9 | 63.9 | 125 | 641 | 480 | 829 | 27 | 445 | 1305 | 44 |
All measurements in millimetres unless marked (°) for angles.
