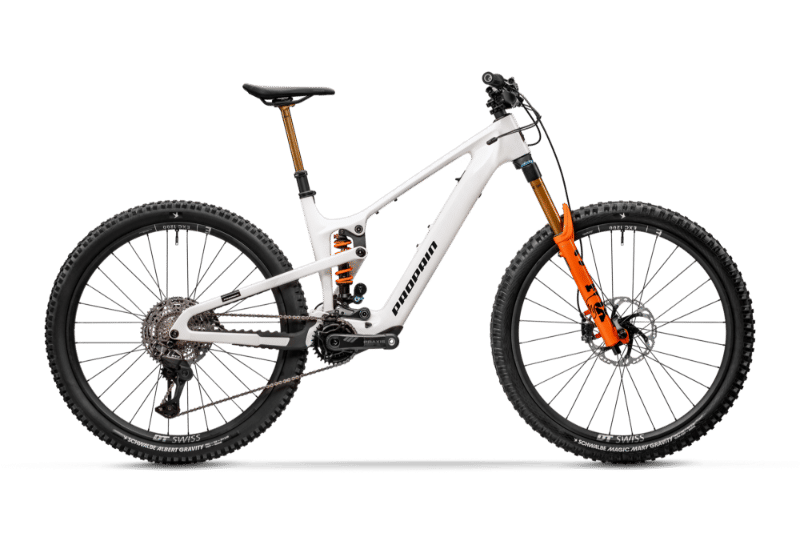

2026 Propain Sresh SL geometry
Full frame geometry for the 2026 Propain Sresh SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 616 | 428 | 77.8 | 64.3 | 100 | 561 | 813 | 23 | 452 | 1213 | 44 |
| M | 625 | 453 | 77.8 | 64.3 | 110 | 588 | 811 | 23 | 452 | 1243 | 44 |
| L | 634 | 478 | 77.8 | 64.3 | 120 | 615 | 807 | 23 | 452 | 1272 | 44 |
| XL | 643 | 503 | 77.8 | 64.3 | 130 | 642 | 804 | 23 | 452 | 1301 | 44 |
All measurements in millimetres unless marked (°) for angles.
