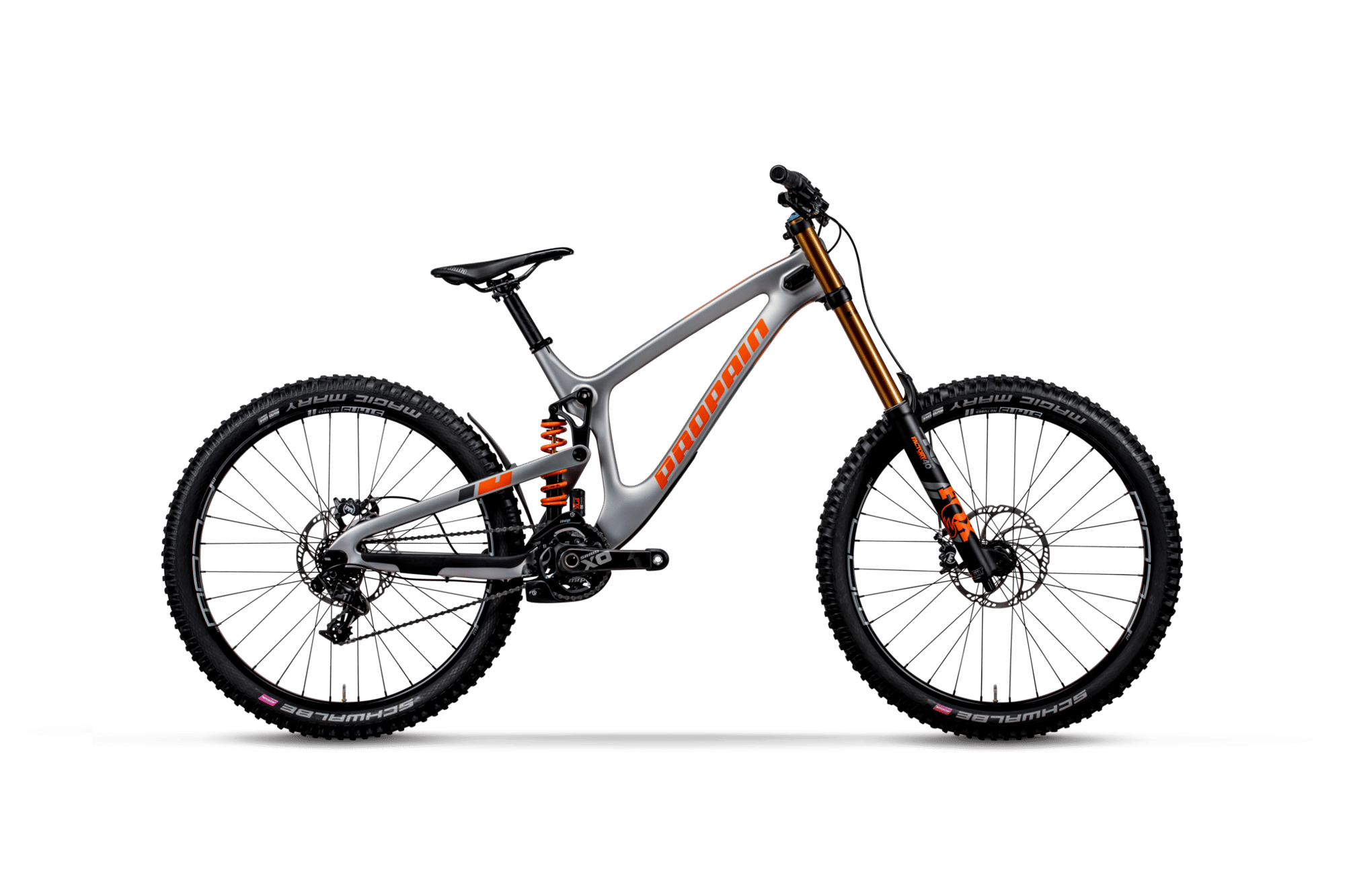

2018 Propain Rage Carbon geometry
Full frame geometry for the 2018 Propain Rage Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| L/XL | 612 | 461 | 74 | 63 | 120 | 420 | 3 | 445 | 1282 | 48 |
| SM | 612 | 431 | 74 | 63 | 120 | 420 | 3 | 445 | 1252 | 48 |
All measurements in millimetres unless marked (°) for angles.
