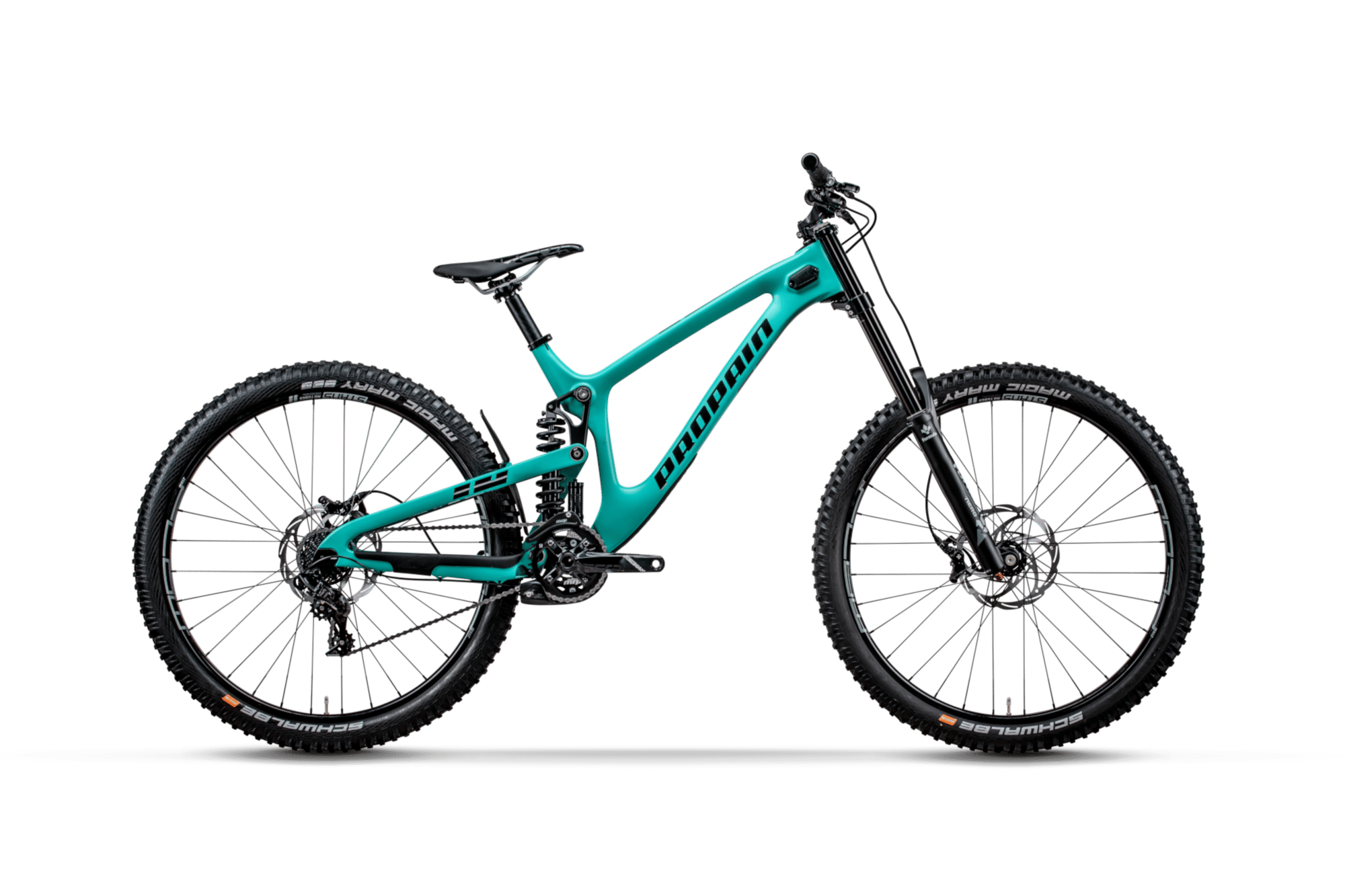

2019 Propain Rage Carbon 29 geometry
Full frame geometry for the 2019 Propain Rage Carbon 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L/XL +6 | 610 | 456 | 74 | 63 | 109 | 632 | 420 | 16 | 459 | 1284 | 58 |
| L/XL -6 | 610 | 444 | 74 | 63 | 109 | 620 | 420 | 16 | 459 | 1272 | 58 |
All measurements in millimetres unless marked (°) for angles.
