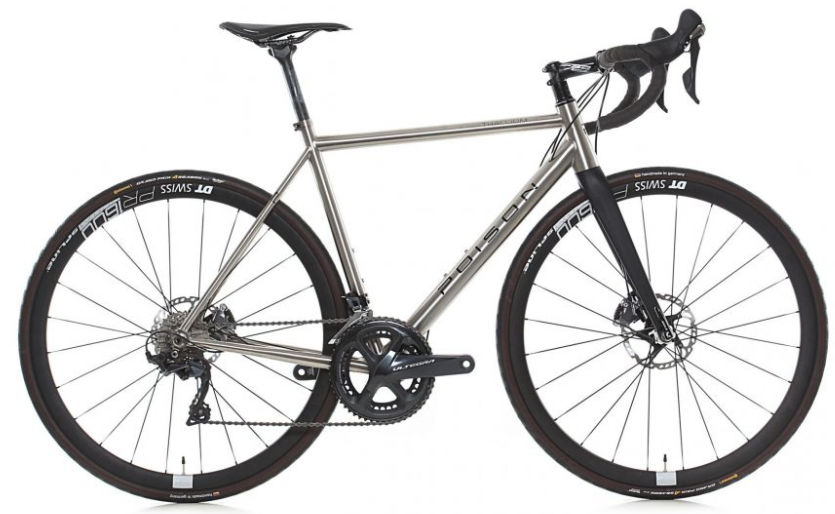

2019 Poison Thallium geometry
Full frame geometry for the 2019 Poison Thallium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 521 | 380 | 74 | 72 | 125 | 530 | 500 | 65 | 420 | 993 | 45 |
| 53 | 536 | 391 | 74 | 72 | 140 | 545 | 530 | 65 | 420 | 999 | 45 |
| 56 | 555 | 406 | 74 | 72 | 160 | 565 | 560 | 65 | 420 | 1009 | 45 |
| 59 | 574 | 420 | 74 | 72 | 180 | 585 | 590 | 65 | 420 | 1018 | 45 |
All measurements in millimetres unless marked (°) for angles.
