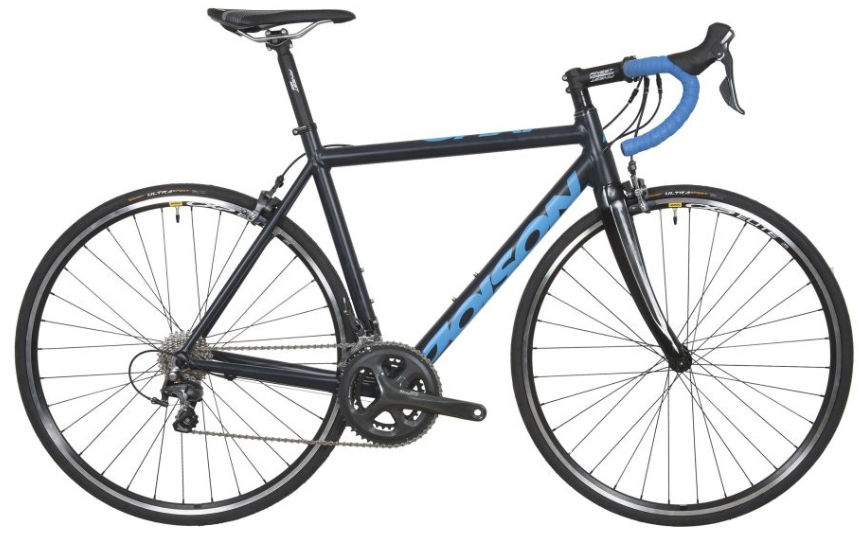

2019 Poison Opiat geometry
Full frame geometry for the 2019 Poison Opiat, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 497 | 362 | 74.5 | 72 | 100 | 500 | 450 | 68 | 405 | 946 |
| 48 | 499 | 372 | 74 | 72.5 | 100 | 515 | 480 | 68 | 405 | 952 |
| 51 | 519 | 371 | 73 | 73 | 120 | 530 | 510 | 68 | 405 | 953 |
| 54 | 538 | 380 | 73 | 73 | 140 | 545 | 540 | 68 | 405 | 968 |
| 56 | 558 | 395 | 73 | 73 | 160 | 565 | 560 | 68 | 405 | 988 |
| 58 | 577 | 404 | 73 | 73 | 180 | 580 | 580 | 68 | 405 | 1003 |
| 61 | 596 | 410 | 73 | 73 | 200 | 592 | 610 | 68 | 405 | 1015 |
All measurements in millimetres unless marked (°) for angles.
