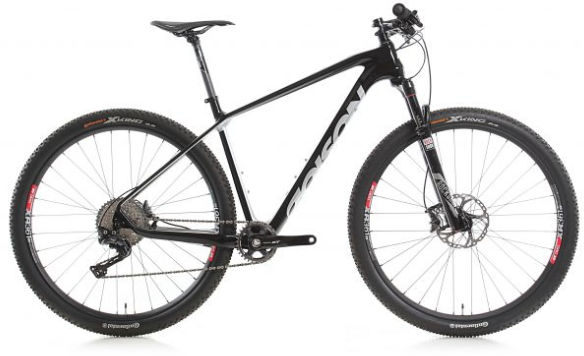

2019 Poison Graphene 27.5 geometry
Full frame geometry for the 2019 Poison Graphene 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 535 | 377 | 73.5 | 70 | 95 | 563 | 381 | 45 | 430 | 1044 |
| 43 | 546 | 403 | 73 | 70.5 | 100 | 584 | 432 | 45 | 430 | 1068 |
| 48 | 558 | 410 | 72.5 | 71 | 110 | 605 | 483 | 45 | 430 | 1074 |
| 53 | 576 | 417 | 72.5 | 71 | 120 | 630 | 533 | 45 | 430 | 1088 |
All measurements in millimetres unless marked (°) for angles.
