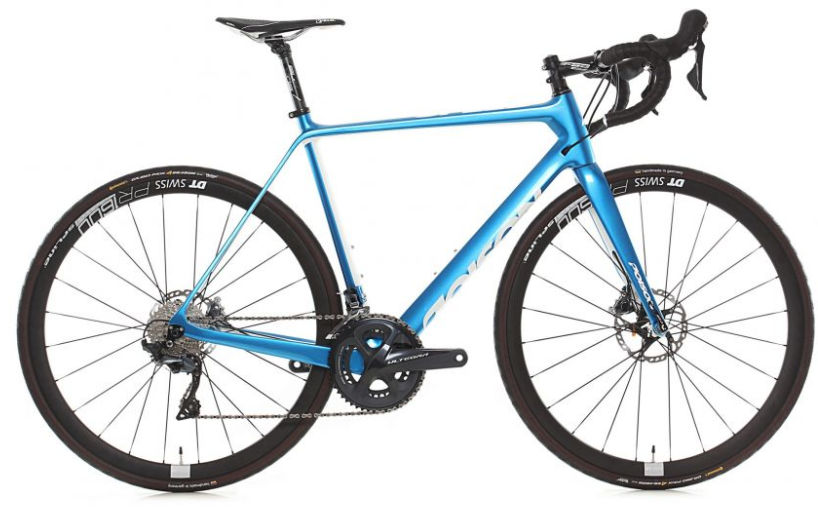

2019 Poison Speed geometry
Full frame geometry for the 2019 Poison Speed, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 507 | 374 | 74 | 71 | 110 | 515 | 470 | 70 | 415 | 979 |
| 50 | 519 | 380 | 74 | 71 | 120 | 523 | 500 | 70 | 415 | 985 |
| 53 | 542 | 383 | 73 | 72 | 140 | 544 | 530 | 70 | 415 | 986 |
| 55 | 557 | 390 | 73 | 72 | 155 | 555 | 550 | 70 | 417 | 997 |
| 57 | 579 | 398 | 73 | 73 | 175 | 575 | 570 | 70 | 417 | 1003 |
| 59 | 603 | 405 | 73 | 73 | 200 | 589 | 590 | 70 | 417 | 1017 |
All measurements in millimetres unless marked (°) for angles.
