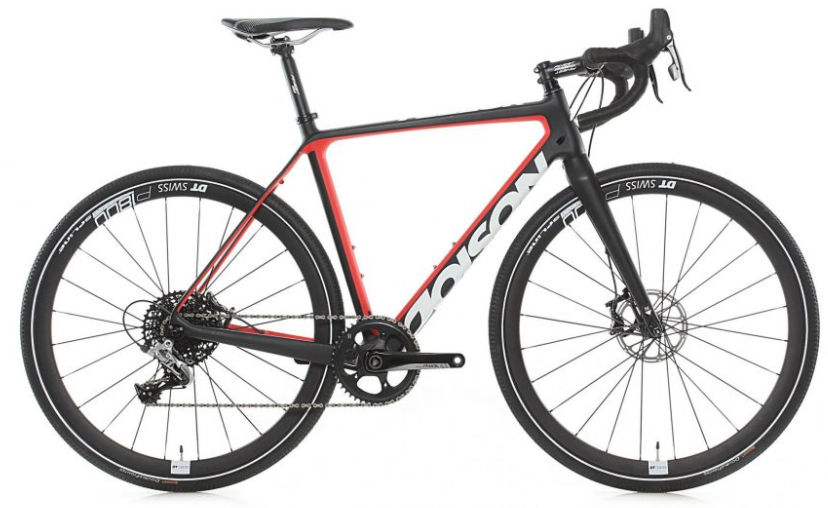

2019 Poison Tellur geometry
Full frame geometry for the 2019 Poison Tellur, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 519 | 375 | 75 | 70 | 100 | 515 | 490 | 67 | 425 | 1011 |
| 52 | 543 | 379 | 74 | 71 | 120 | 530 | 515 | 67 | 425 | 1009 |
| 54 | 562 | 378 | 73 | 72 | 140 | 545 | 540 | 67 | 425 | 1010 |
| 56 | 583 | 381 | 73 | 72 | 160 | 560 | 565 | 67 | 425 | 1015 |
| 59 | 604 | 390 | 72 | 73 | 180 | 575 | 590 | 67 | 425 | 1025 |
All measurements in millimetres unless marked (°) for angles.
