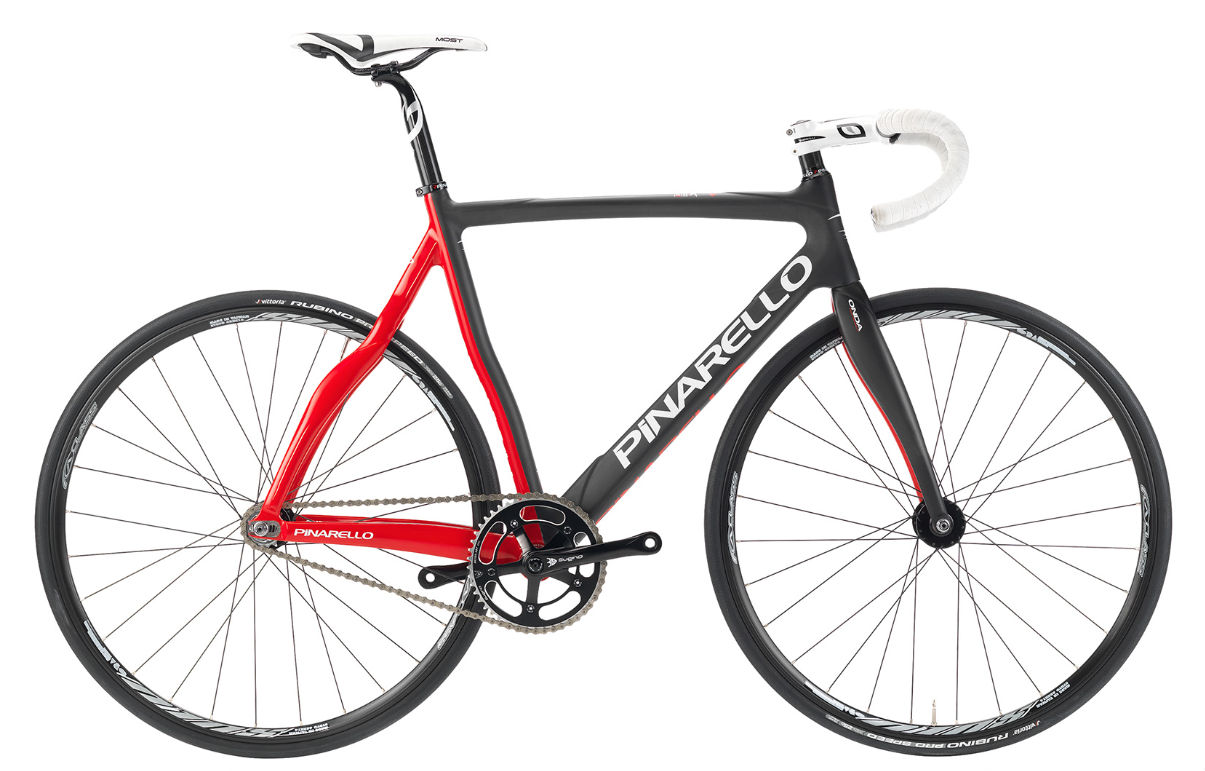

2014 Pinarello XTrack geometry
Full frame geometry for the 2014 Pinarello XTrack, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 501 | 387 | 72.3 | 74.5 | 110 | 520 | 487 | 52 | 553 | 375 | 922 | 38 | 53 |
| 51.5 | 534 | 388 | 74.5 | 74.5 | 144 | 536 | 542 | 52 | 563 | 375 | 932 | 38 | 53 |
| 53.2 | 550 | 400 | 74.5 | 74.5 | 160 | 552 | 559 | 52 | 580 | 375 | 949 | 38 | 53 |
| 55 | 563 | 411 | 74.5 | 74.5 | 174 | 567 | 577 | 52 | 594 | 375 | 963 | 38 | 53 |
| 58 | 592 | 410 | 73.8 | 74.5 | 204 | 582 | 607 | 52 | 601 | 375 | 970 | 38 | 53 |
All measurements in millimetres unless marked (°) for angles.
