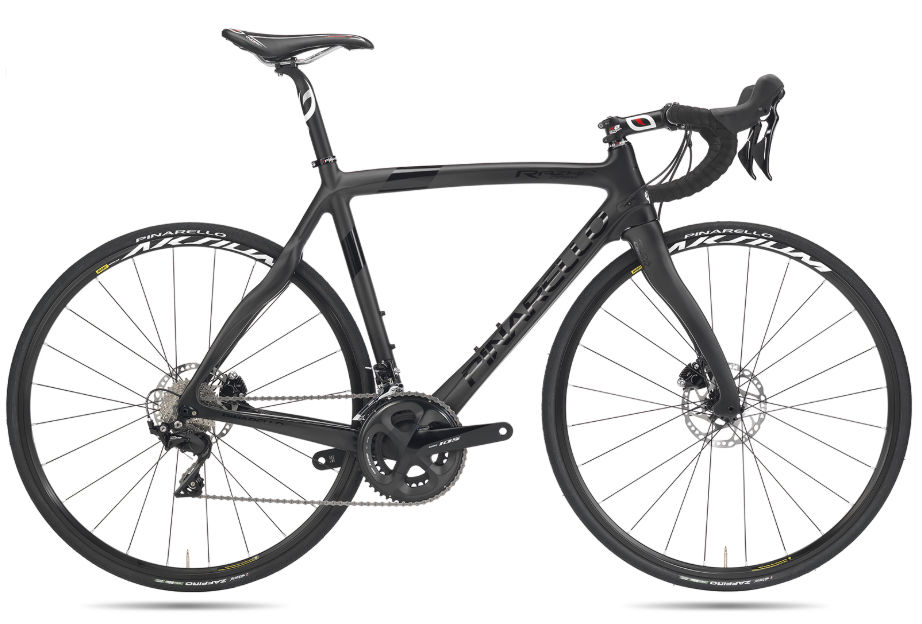

2019 Pinarello Razha Disk geometry

Name: 2019 Pinarello Razha Disk
Brand: Pinarello

Full frame geometry for the 2019 Pinarello Razha Disk, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
44	505	355	74.4	70	115	503	756	67	565	410	966	43	78
46.5	512	368	74.4	70.5	120	515	772	67	575	410	976	43	74
50	525	372	74	71.4	125	525	792	72	575	410	974	43	69
51.5	531	378	73.7	72	130	535	804	72	578	410	977	43	65
53	546	384	73.7	72.5	144	545	819	72	583	410	982	43	62
54	555	384	73.4	72.8	152	550	829	72	583	410	982	43	60
55	566	388	73.4	72.8	163	557	840	72	590	410	989	43	60
56	574	390	73	73.2	170	565	850	72	592	412	993	43	57
57.5	589	396	73	73.7	184	575	865	72	596	412	997	43	54
59.5	608	395	72.4	73.4	210	587	891	67	605	412	1008	43	56

All measurements in millimetres unless marked (°) for angles.
