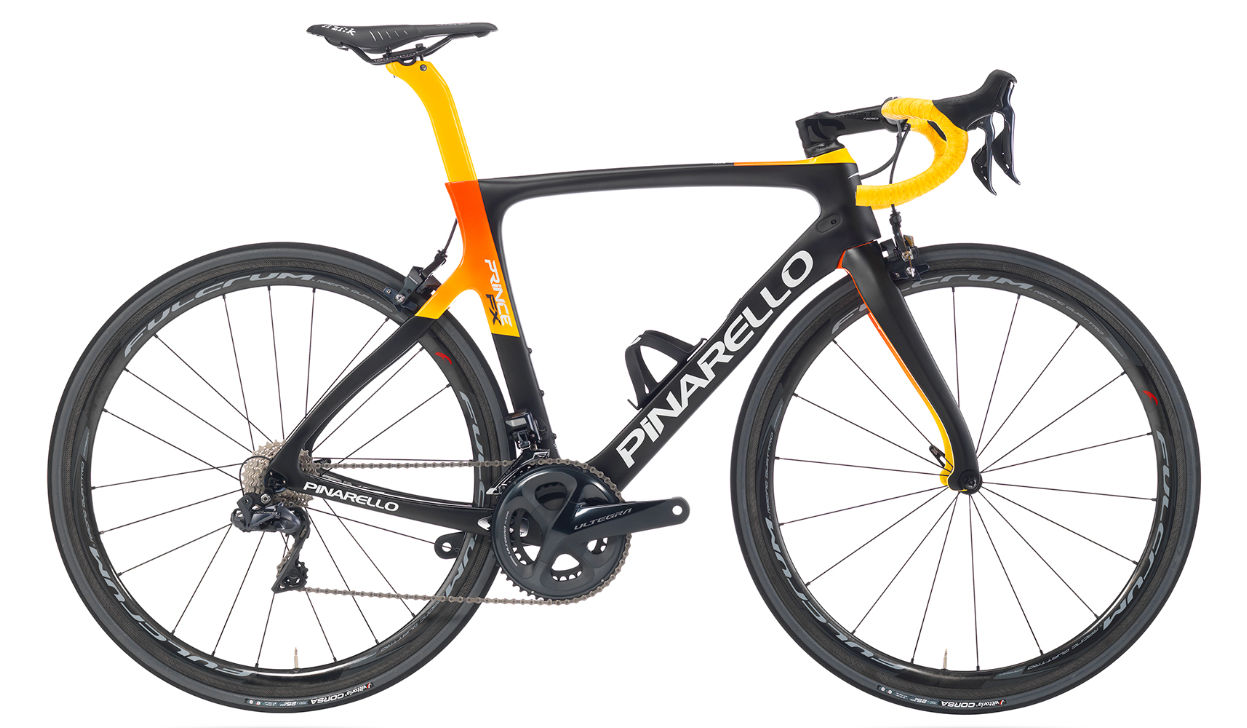

2019 Pinarello Prince MK II geometry

Name: 2019 Pinarello Prince MK II
Brand: Pinarello

Full frame geometry for the 2019 Pinarello Prince MK II, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Fork rake (mm)
42.5EF	504	348	74	70	115	500	440	67	563	408	50
44	506	354	74.4	70	115	503	435	67	565	408	43
46.5	513	367	74.4	70.5	120	515	460	67	575	408	43
46EF	522	358	74	71	130	512	475	67	570	408	50
50	525	372	74	71.4	125	525	495	72	575	408	43
51.5	532	378	73.7	72	130	535	510	72	578	408	43
53	543	386	73.7	72.5	139	545	525	72	583	408	43
49EF	544	365	73.5	72	145	528	505	72	575	408	50
51EF	554	374	73	72	155	545	525	72	588	408	50
54	556	384	73.4	72.8	152	550	535	72	583	408	43
55	567	387	73.4	72.8	163	557	545	72	590	408	43
56	575	390	73	73.2	170	565	555	72	591	410	43
57.5	590	395	73	73.7	184	575	570	72	596	410	43
59.5	609	395	72.4	73.4	210	587	590	67	605	410	43
62	651	410	72	73.4	255	620	615	67	633	411	43

All measurements in millimetres unless marked (°) for angles.
