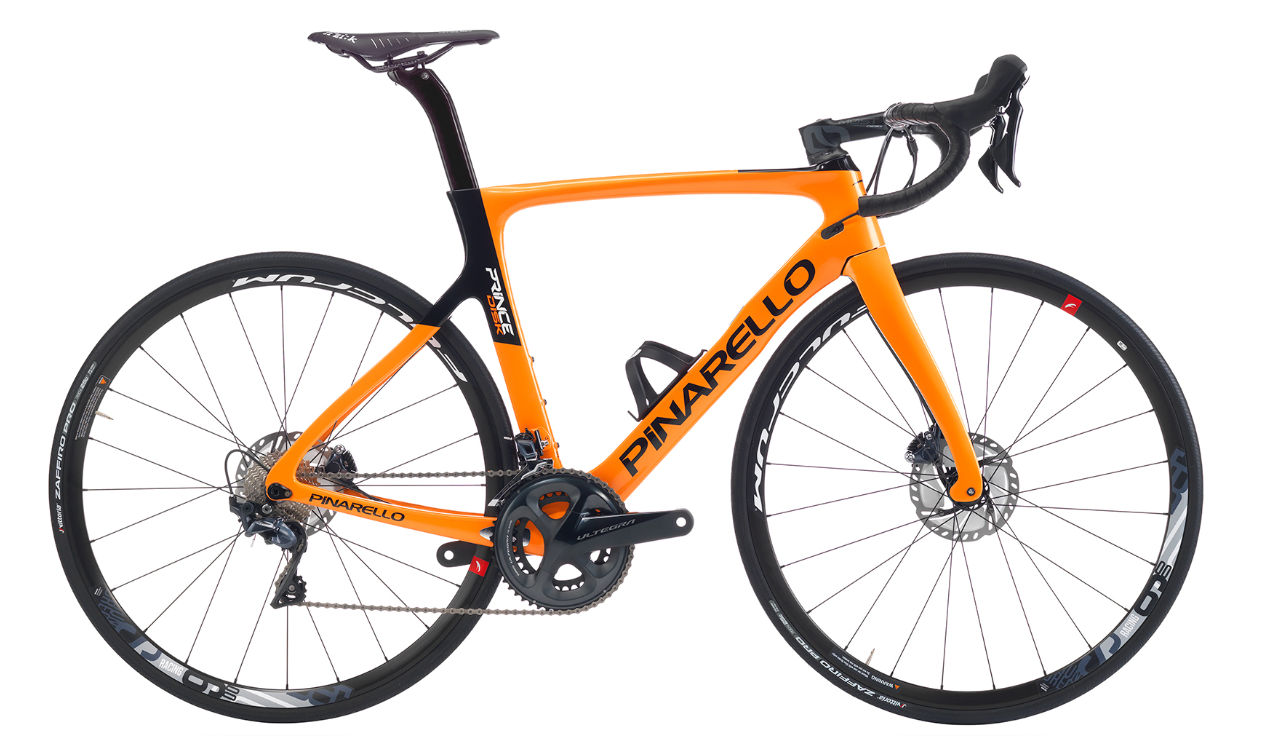

2019 Pinarello Prince Disk geometry

Name: 2019 Pinarello Prince Disk
Brand: Pinarello

Full frame geometry for the 2019 Pinarello Prince Disk, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Chainstay (mm)	Fork rake (mm)
425	504	348	74	70	115	500	440	67	408	50
440	506	354	74.4	70	115	503	435	67	408	43
465	513	367	74.4	70.5	120	515	460	67	408	43
460	522	358	74	71	130	512	475	67	408	50
500	525	370	74	71.4	125	525	495	72	408	43
515	532	378	73.7	72	130	535	510	72	408	43
530	543	386	73.7	72.5	139	545	525	72	408	43
490	544	365	73.5	72	145	528	505	72	408	50
510	554	374	73	72	155	545	525	72	408	50
540	556	384	73.4	72.8	152	550	535	72	408	43
550	567	387	73.4	72.8	163	557	545	72	408	43
560	575	390	73	73.2	170	565	555	72	410	43
575	590	395	73	73.7	184	575	570	72	410	43
595	609	395	72.4	73.4	210	587	590	67	410	43
620	651	410	72	73.4	255	620	615	67	411	43
—	—	—	—	—	—	—	—	—	—	—

All measurements in millimetres unless marked (°) for angles.
