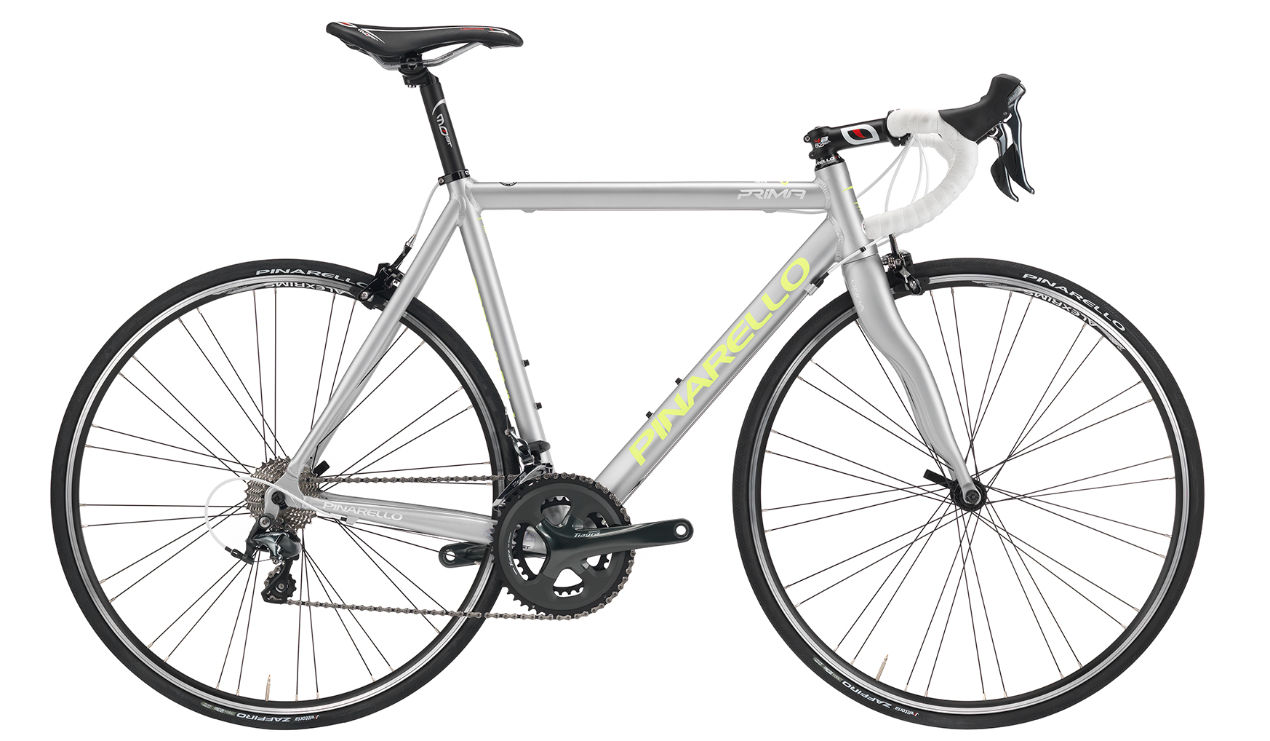

2019 Pinarello Prima geometry

Name: 2019 Pinarello Prima
Brand: Pinarello

Full frame geometry for the 2019 Pinarello Prima, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Fork rake (mm)
42	492	355	74.5	69.5	105	500	440	64	565	403	43
44	501	374	74.5	71	110	518	475	64	579	403	43
46	507	375	74.5	71	113	520	495	67	580	403	43
50	524	380	74.2	72.5	120	529	535	72	573	406	43
52	540	378	73.5	72	139	539	555	72	582	406	43
54	556	385	73.5	73	152	550	575	72	583	407	43
56	577	393	73.2	73.5	172	566	595	72	592	408	43
58	590	390	72.5	73.2	190	575	615	69	596	409	43
60	608	392	72.5	73.2	214	583	635	64	604	409	43
62	618	392	72	73	225	592	655	64	610	409	43

All measurements in millimetres unless marked (°) for angles.
