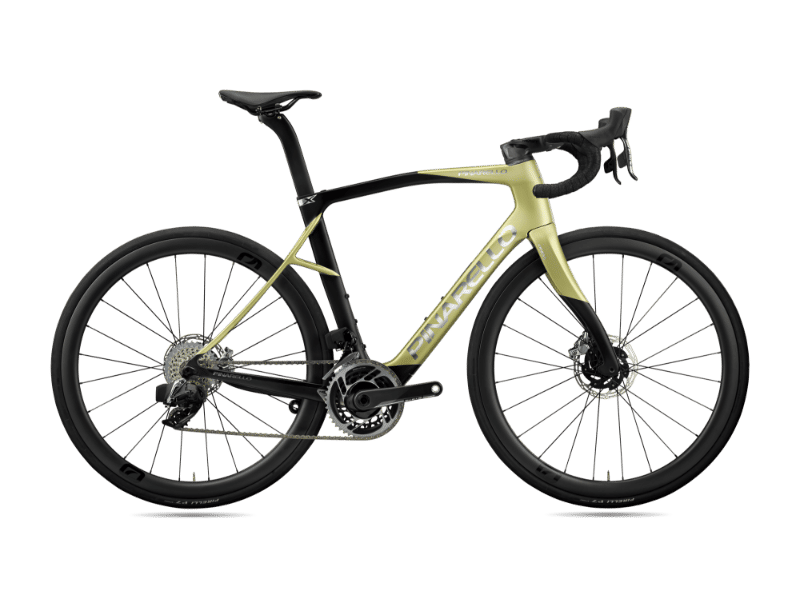

2026 Pinarello Pinarello X geometry
Full frame geometry for the 2026 Pinarello Pinarello X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 425 | 527.5 | 341.9 | 75.3 | 70 | 123 | 492 | 425 | 67 | 422 | 52 |
| 450 | 539.2 | 352.1 | 74.5 | 70.5 | 128 | 509 | 450 | 72 | 422 | 52 |
| 470 | 552.4 | 361.9 | 74 | 71 | 140 | 525 | 470 | 72 | 422 | 52 |
| 495 | 564.4 | 368.5 | 73.8 | 71.5 | 149 | 536 | 495 | 72 | 422 | 47 |
| 510 | 575.8 | 372.5 | 73.5 | 72 | 159 | 545 | 510 | 72 | 422 | 47 |
| 525 | 588.2 | 376.7 | 73.3 | 72.3 | 171 | 555 | 525 | 72 | 422 | 47 |
| 540 | 602.4 | 380.2 | 73 | 72.5 | 185 | 565 | 540 | 72 | 422 | 47 |
| 560 | 620.3 | 384.1 | 72.8 | 72.5 | 209 | 577 | 560 | 67 | 422 | 47 |
| 590 | 640.4 | 388.1 | 72.5 | 72.5 | 230 | 590 | 590 | 67 | 422 | 47 |
All measurements in millimetres unless marked (°) for angles.
