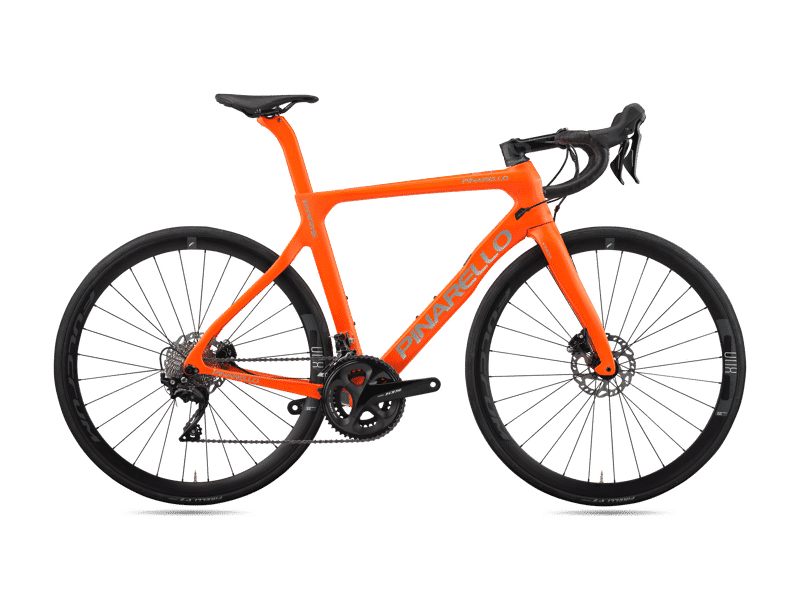

2021 Pinarello Paris Disk geometry

Name: 2021 Pinarello Paris Disk
Brand: Pinarello

Full frame geometry for the 2021 Pinarello Paris Disk, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Fork rake (mm)
43	512	347	75.2	70	119	492	430	67	569	415	52
46	524	358	74.5	70.5	124	509	460	72	577	415	52
49	537	367	74	71	136	525	490	72	587	415	52
51.5	549	374	73.8	71.5	145	536	515	72	587	415	47
53	560	378	73.5	72	155	545	530	72	590	415	47
54.5	573	382	73.2	72.2	167	555	545	72	596	415	47
56	587	385	73	72.5	181	565	560	72	601	415	47
58	605	389	72.8	72.5	205	577	580	67	612	415	47
60	625	393	72.5	72.5	226	590	600	67	622	415	47

All measurements in millimetres unless marked (°) for angles.
