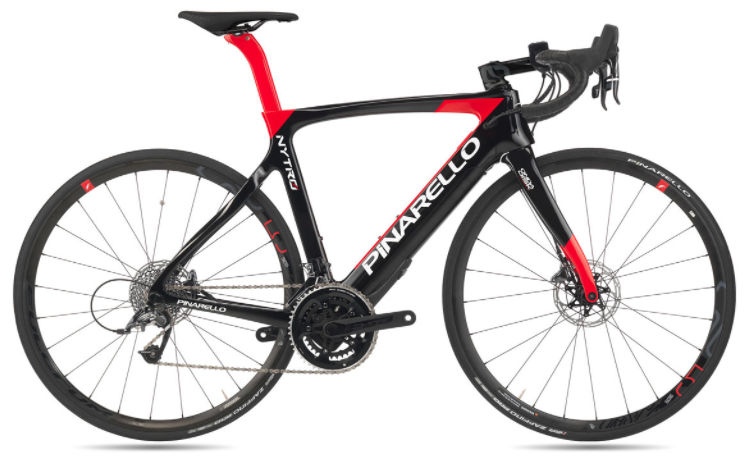

2018 Pinarello Nytro geometry
Full frame geometry for the 2018 Pinarello Nytro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46.5 | 531 | 370 | 74 | 71.4 | 130 | 525 | 465 | 72 | 582 | 412 | 983 | 50 |
| 50 | 531 | 370 | 74 | 71.4 | 130 | 525 | 488 | 72 | 582 | 412 | 983 | 50 |
| 53 | 553 | 382 | 73.7 | 72.5 | 149 | 545 | 518 | 72 | 591 | 412 | 992 | 50 |
| 55 | 572 | 389 | 73.4 | 72.8 | 168 | 560 | 538 | 72 | 600 | 412 | 1002 | 50 |
| 58 | 615 | 397 | 72.5 | 73.5 | 215 | 590 | 568 | 67 | 615 | 412 | 1018 | 50 |
All measurements in millimetres unless marked (°) for angles.
