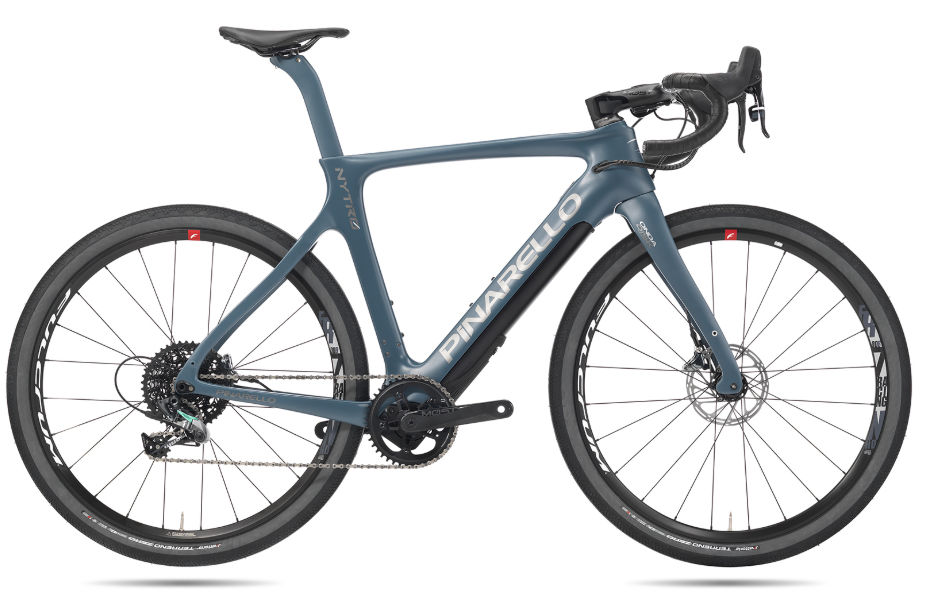

2019 Pinarello Nytro Gravel geometry
Full frame geometry for the 2019 Pinarello Nytro Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 549 | 367 | 73.5 | 70 | 135 | 536 | 462 | 767 | 67 | 599 | 430 | 1020 | 50 | 75 |
| 50 | 551 | 368 | 73 | 70.5 | 135 | 540 | 492 | 784 | 67 | 596 | 430 | 1017 | 50 | 72 |
| 53 | 562 | 376 | 72.5 | 71 | 145 | 555 | 522 | 806 | 67 | 603 | 430 | 1024 | 50 | 69 |
| 56 | 588 | 384 | 72 | 71.5 | 170 | 575 | 552 | 835 | 67 | 614 | 430 | 1035 | 50 | 65 |
| 59 | 614 | 390 | 71.5 | 72 | 195 | 595 | 582 | 865 | 67 | 624 | 430 | 1045 | 50 | 62 |
All measurements in millimetres unless marked (°) for angles.
