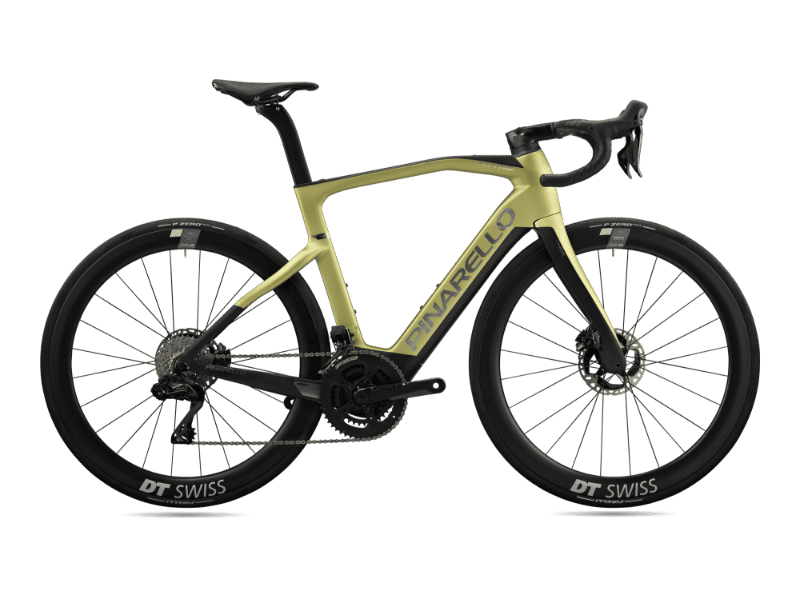

2026 Pinarello Nytro E Road geometry
Full frame geometry for the 2026 Pinarello Nytro E Road, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 450 | 545.4 | 358.4 | 74.5 | 71.8 | 130 | 515 | 450 | 72 | 420 | 47 |
| 488 | 555.8 | 369.7 | 74 | 72 | 140 | 532 | 488 | 72 | 420 | 47 |
| 510 | 567.2 | 377.5 | 73.7 | 72.3 | 151 | 545 | 510 | 72 | 420 | 47 |
| 535 | 586.2 | 384.2 | 73.4 | 72.5 | 170 | 560 | 535 | 72 | 420 | 47 |
| 555 | 615.8 | 391.4 | 73 | 72.8 | 200 | 580 | 555 | 72 | 420 | 47 |
| 575 | 640.6 | 398 | 72.9 | 73 | 225 | 595 | 575 | 72 | 420 | 47 |
All measurements in millimetres unless marked (°) for angles.
