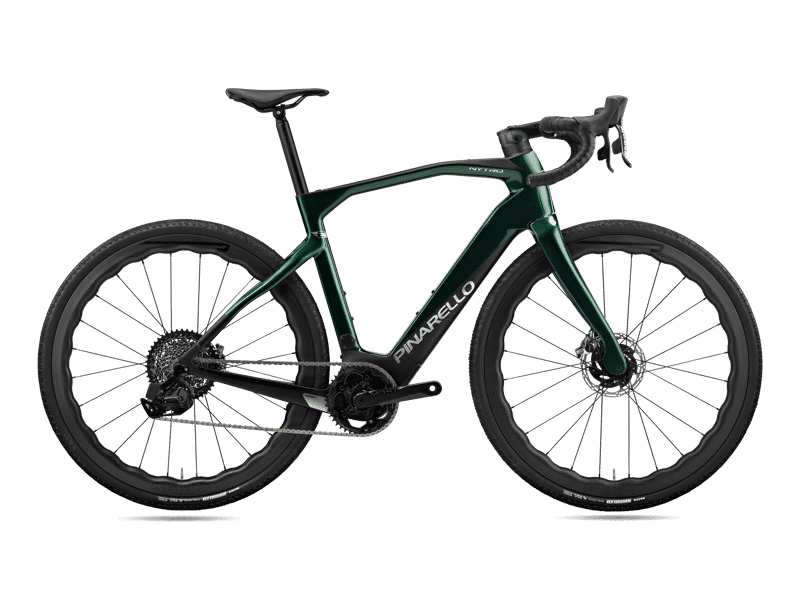

2023 Pinarello Nytro E Gravel geometry
Full frame geometry for the 2023 Pinarello Nytro E Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 460 | 558.9 | 357.4 | 74.5 | 69.8 | 125 | 523 | 78 | 437 | 50 |
| 500 | 571.2 | 364.2 | 74 | 70 | 137 | 535 | 78 | 437 | 50 |
| 530 | 589.1 | 372.9 | 73.8 | 70.3 | 155 | 550 | 78 | 437 | 50 |
| 550 | 606.3 | 380.6 | 73.5 | 71 | 170 | 564 | 78 | 437 | 50 |
| 575 | 622.3 | 388.3 | 73 | 71.3 | 190 | 581 | 74 | 437 | 50 |
| 600 | 642.3 | 395.9 | 72.8 | 71.5 | 210 | 597 | 74 | 437 | 50 |
All measurements in millimetres unless marked (°) for angles.
